Transmitter/receiver unit, location/task/design/function - GF82.95-P-4300R: Notes

MODELS 230 up to 31.5.04 with CODE (855) TELE AID

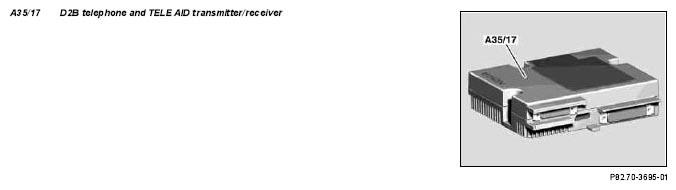

Fig 1: Identifying D2B Telephone And TELE AID Transmitter/Receiver

The CTEL and TELE AID transmitter/receiver, D2B (A35/17) is located on the cardan shaft tunnel, behind the seats under a cover.

Transmitter/receiver, location		GF82.95-P-4300-01R
Transmitter/receiver unit, purpose	Central control of TELE AID emergency call Control of TELE AID telediagnosis and information call Installing SIM card
Transmitter/receiver, design	Integrated telephone transmitter/receiver unit Integrated GPS components Integrated additional battery Integrated interface (D2B bus)
Transmitter/receiver, function	Central processing of all data required for a TELE AID emergency call Setting up data required for vehicle position calculation and generating an emergency call telegram. Telephone transmitter/receiver unit
