Fuel pump relay, location/task/design/function - GF54.15-P-4105M: Notes
MODEL 215, 220 with ENGINE 275.950 /980
MODEL 230 with ENGINE 275.951 /954 /981
MODEL 240 with ENGINE 285.950 /980

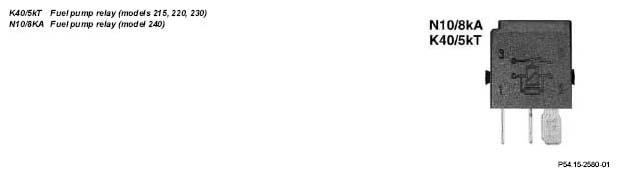

| Fuel pump relay, location | Model 215, 220 | GF54.15-P-4105-01MM | |
| Model 230 | GF54.15-P-4105-01RM | ||
| Model 240 | GF54.15-P-4105-01MA | ||
| Fuel pump relay, task | To supply the fuel pump control unit (N118) with voltage. | ||
| Fuel pump relay, design | 4-pin plug-type relay with an N.O. contact. | ||
| Fuel pump relay, function | GF54.15-P-4105-02M |
