Lower control panel control module, location/purpose/design/function - GF54.21-P-4116R: Notes

MODEL 230

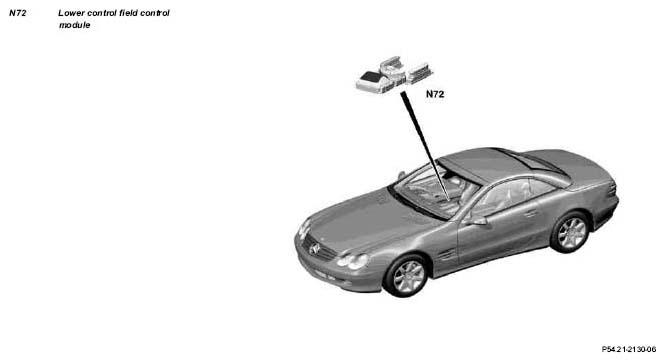

Fig 1: Identifying Lower Control Panel Control Module Components - Model 230

Courtesy of MERCEDES-BENZ USA

	Lower control panel control module, location	The lower control panel control module (N72)  is housed in the center console. The two special equipment blocks are located on the left and right of the gearshift bracket.
	Lower control panel control module, task		GF54.21-P-4116-01R
	Lower control panel control module, design		GF54.21-P-4116-02R
