Remove/install heated O2 sensor - AR07.52-P-5303RMG (SL63 AMG)
ENGINE 156 in MODEL 230.470
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | - | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | - | |
| 1 | Switch off ignition | ||
| 2 | Remove engine compartment paneling | AR61.20-P-1105R | |
| 3 | Unclip electrical connector and electrical feed line for corresponding O2 sensor out of retaining clamps on transmission | ||
| 4 | Disconnect electrical connector for corresponding O2 sensor | ||

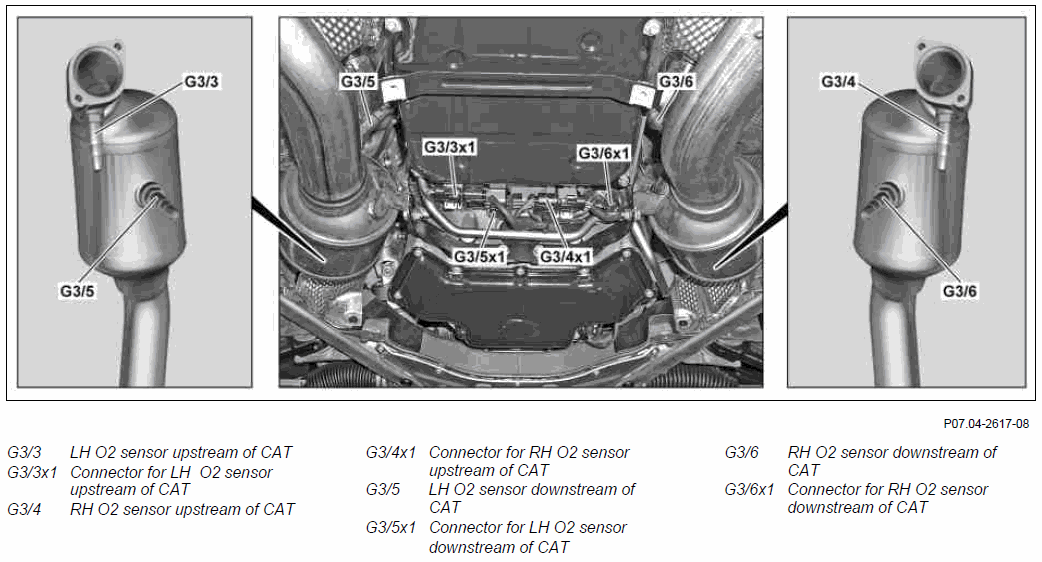

| 5 | Unscrew the corresponding O2 sensor from the catalytic converter | From the top, detach LH O2 sensor upstream of CAT (G3/3) or RH O2 sensor upstream of CAT (G3/4). Installation: Coat thread with heat-resistant lubricant. Ensure correct routing of lines on O2 sensors. |
|
| *BA14.00-P-1002-01A | |||
| Fig 2 | |||
| Paste | *BR00.45-Z-1005-06A | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Conduct engine test run and check exhaust system for leaks |
O2 SENSOR
| Number | Designation | Engine 156 | |
|---|---|---|---|
| BA14.00-P-1002-01A | O2 sensor on catalytic converter | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
