Front passenger airbag, location/task/design/function - GF91.60-P-4003R: Notes

MODEL 230

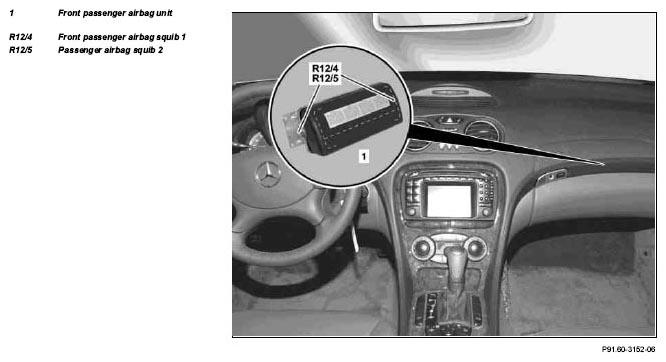

Fig 1: Identifying Front Passenger Airbag Unit - Model 230

Courtesy of MERCEDES-BENZ USA

	Front passenger airbag, location	The front passenger airbag unit (1) with the front passenger airbag squib 1 (R12/4) and the front passenger airbag squib 2 (R12/5) is located in the instrument panel above the glove compartment.
	Front passenger airbag, task		GF91.60-P-4003-04R
	Front passenger airbag, design		GF91.60-P-4003-03R
	Front passenger airbag, function		GF91.60-P-4003-02R
