Front seat adjustment switch group, location/design/function - GF91.29-P-2100R: Notes

MODEL 230

Shown on driver's door

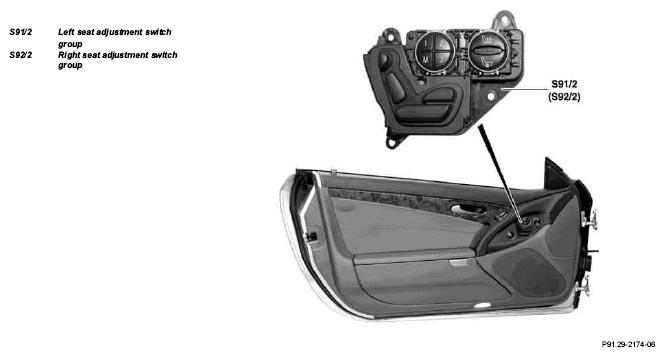

Fig 1: Identifying Front Seat Adjustment Switch Group - Shown On Driver's Door

Courtesy of MERCEDES-BENZ USA

	Front seat adjustment switch group, location	The left seat adjustment switch group (S91/2) is located in the door lining of the driver door. The right seat adjustment switch group (S92/2) is located in the door lining of the front passenger door.
	Front seat adjustment switch group, design		GF91.29-P-2100-04R
	Front seat adjustment switch group, function		GF91.29-P-2100-02R
