Kneebag, location/task/design/function - GF91.60-P-4019R: Notes

MODEL 230 with CODE (494) USA version

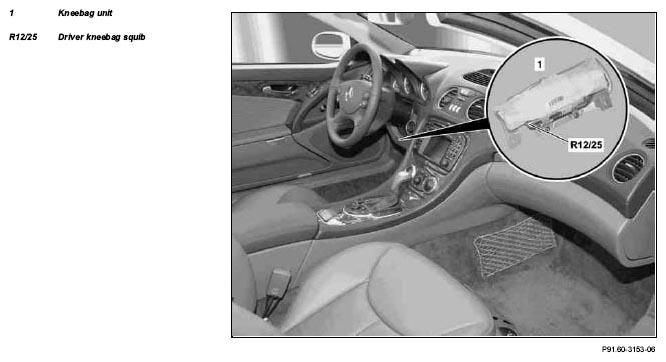

Fig 1: Identifying Kneebag, - Model 230 With Code (494) USA Version

Courtesy of MERCEDES-BENZ USA

	Kneebag location	The kneebag unit (1) with the driver kneebag squib (R12/25) is located in the dashboard paneling below the steering column.
	Kneebag, task	The kneebag integrated into the kneebag unit (1) protects the driver against injury to the knee in the event of a frontal impact.
	Kneebag, design		GF91.60-P-4019-02R
	Kneebag, function		GF91.60-P-4019-03R
