Seat belt lock sensor, location/design/function - GF91.40-P-4002R: Notes
MODEL 230

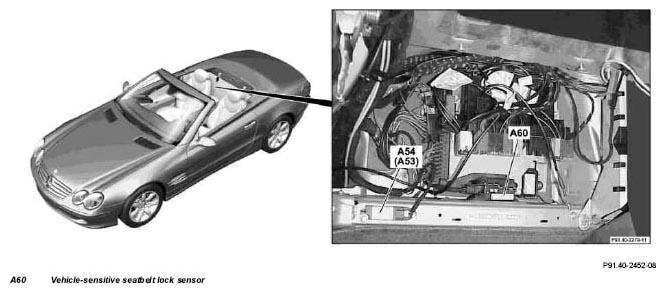

| Seat belt lock sensor location | The vehicle-sensitive seat belt lock sensor (A60) is located at the crossmember below the left-hand rear-compartment box. | ||
| Seat belt lock sensor, task | GF91.40-P-4002-01R | ||
| Seatbelt lock sensor, function | At a corresponding acceleration/deceleration of >0.45 g, or at a vehicle inclined position of >27°, a steel ball in the vehicle-sensitive seatbelt lock sensor is accelerated and interrupts a photoelectric barrier. Electronics is evaluating this. |
