Location/task/function of command valve - GF27.60-P-5138G: Notes
TRANSMISSION 722.6

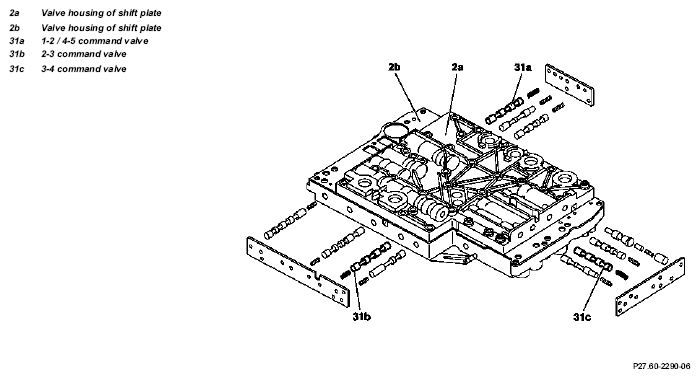

| Command valve, location | Each shift group possesses one command valve. The 1-2/4-5 command valves (31a) and 2-3 (31b) are installed in the valve housing of the shift plate (2b), the 3-4 command valve (31c) is installed in the valve housing of the shift plate (2a). | ||
| Command valve, task | The command valves switch the shift groups from the stationary phase into the shift phase and back again | ||
| Command valve, function | GF27.60-P-5138-04G |
