Fuse assignment of front prefuse box - GF54.15-P-1256-07RIT

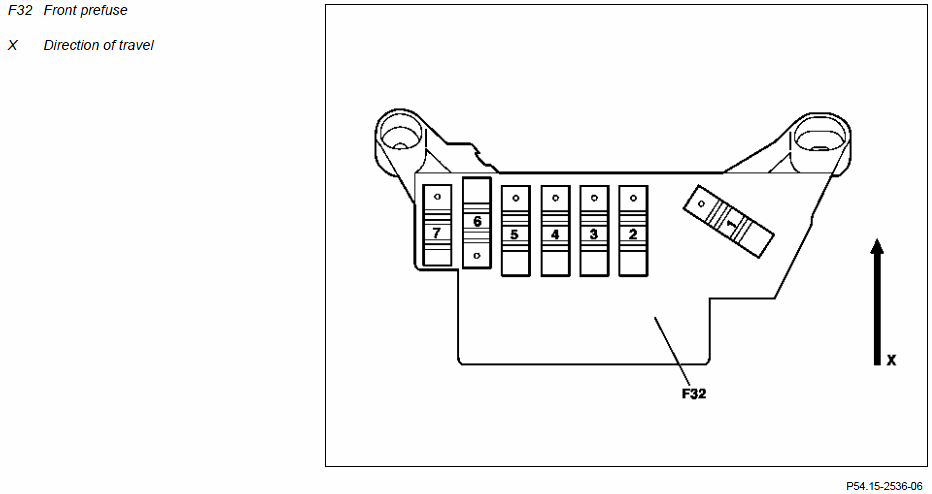

Fig 1: Identifying F32 Front Pre-Fuse Box
G00543146Courtesy of MERCEDES-BENZ USA

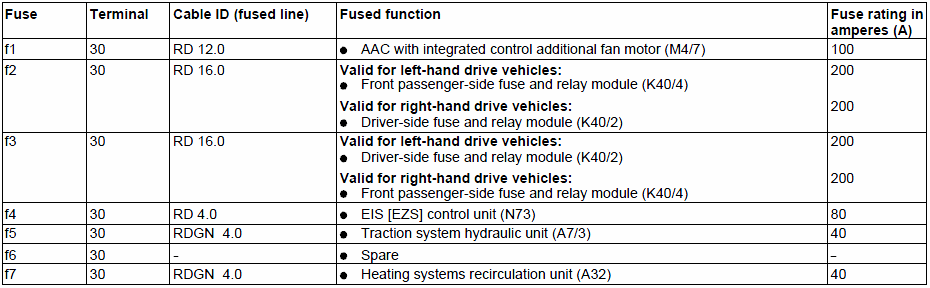

Fuse rating in amperes (A):

Fig 2: Fuse Rating
G00543147Courtesy of MERCEDES-BENZ USA
