Planetary gear set, location/task/design/function - GF27.50-P-5100N: Notes
TRANSMISSION 722.9 in MODEL 171.4, 203, 209, 211, 215, 219, 220, 230 Ravigneaux gear set
TRANSMISSION 722.9 in MODEL 463.303 /340 /341

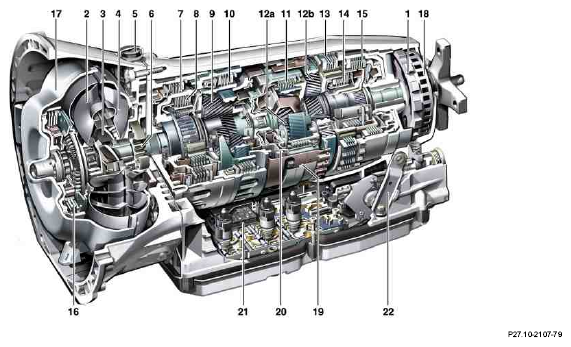

| Planetary gear set, location | The Ravigneaux gear set (9) is located in the mechanical part of the transmission. | ||
| Planetary gear set, task | Power transmission and production of different gear ratios. | ||
| Planetary gear set, design | The Ravigneaux gear set (9) used consists of 2 ring gears, a planet carrier, a sun gear as well as short and long planetary gears. | ||
| Planetary gear set, function | GF27.50-P-5100-01N |
