Operating, display and control unit, location/task/design/function with code 530 - GF82.85-P-3114SKU: Notes

MODEL 171.4 with CODE (530) COMAND APS USA (with navigation system)

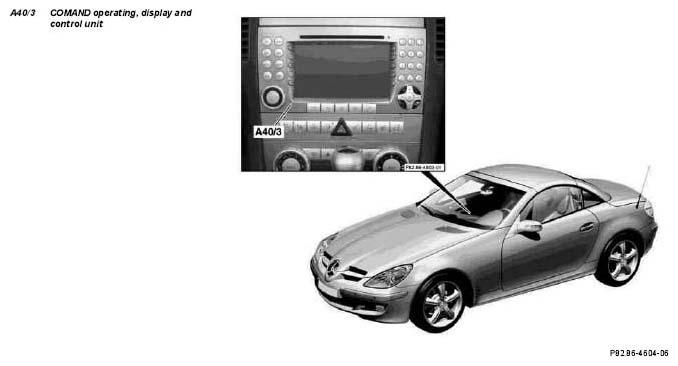

Fig 1: Identifying Operating, Display And Control Unit Location
G05030619Courtesy of MERCEDES-BENZ USA
Operating, display unit with control unit, location The COMAND operating, display and control unit (A40/3) is installed in the center console.
Operating, display and control unit, task   GF82.85-P-3130-02SKU
Operating, display unit with control unit, design   GF82.85-P-3114-07SKU
Operating, display unit with control unit, function   GF82.85-P-3114-08SKU
