Operating/display unit with control unit, location/task/design/function with CODE (527) - GF82.85-P-3114SK: Notes

MODEL 171.4 with CODE (527) COMAND APS with single DVD drive (with navigation)

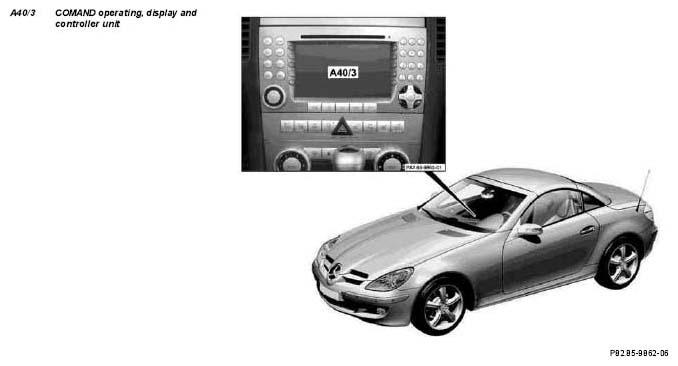

Fig 1: Identifying Operating/Display Unit With Control Unit Location
G05030618Courtesy of MERCEDES-BENZ USA
Operating/display unit with control unit, location The COMAND operating, display and controller unit (A40/3) is integrated into the center console.
Operating, display and control unit, task Central control of the following systems:
  • Audio system (radio, CD, MP3 player via AUX jack)
  • Telephone (UPCI [UHI])
  • Navigation system
  • DVD video

Operating/display unit with control unit, design   GF82.85-P-3114-07SK
Operating/display unit with control unit, function   GF82.85-P-3114-08SK
