Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Right rear of engine compartment. |
| Audio Gateway Control Module | Right footwell. |

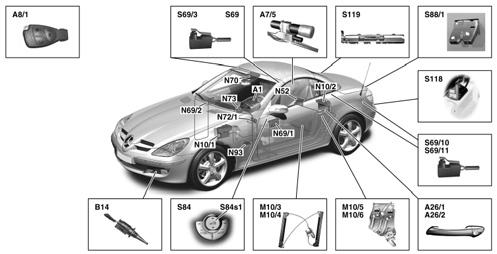

| Central Gateway Control Module (N93) | Back side of left underdash panel. See Figure. |
| Driver Front Seat Adjustment Control Module With Memory | Under left seat. |

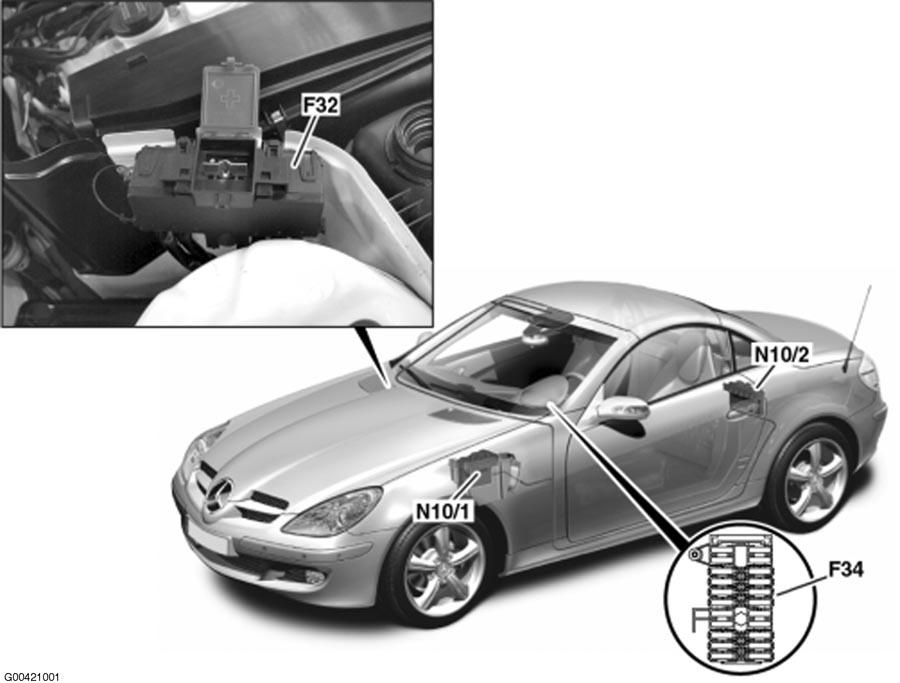

| Driver-Side SAM Control Module With Fuse & Relay Module (N10/1) | Left rear of engine compartment. See Figure. |
| EIS [EZS] Control Module | Left side of dash. |
| Electric Control Unit (Transmission) | Right front of transmission housing. |
| Electric Control Unit (VGS) | Inside transmission housing. |
| Electric Steering Lock Control Module | Left footwell. |
| Electronic Selector Lever Module Control Module | Front of center console. |
| Emergency Call System Control Unit | Front of trunk. |
| ESP & BAS Control Unit | Left front of engine compartment. |
| ETC [EGS] Control Module | Right footwell, behind plate. |
| Front HS [SIH], AIRSCARF & Steering Wheel Heater Control Unit | Behind right seat. |
| Front Passenger Front Seat Adjustment Control Module With Memory | Under right seat. |
| Fully Integrated Transmission Control (VGS) Control Unit | Inside transmission housing. |
| Headlamp Range Adjustment Control Module | Near left "A" pillar. |
| Left Door Control Unit | In left door. |

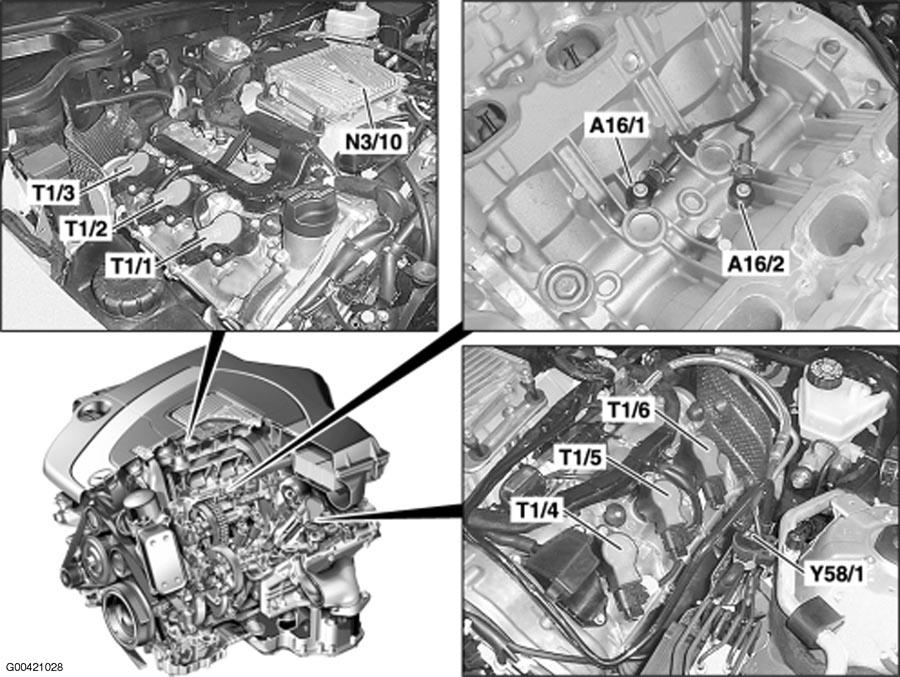

| ME-SFI Control Module (N3/10) | On center of engine. See Figure. |
| Navigation Processor | Front center of trunk. |
| Overhead Control Panel Control Module | Behind overhead control panel. |
| Power Soft Top Control Unit (N52) | Right rear of vehicle. See Figure. |
| Rear SAM Control Unit With Fuse & Relay Module (N10/2) | Front of trunk. See Figure. |
| Restraint Systems Control Unit | Behind front of center console. |
| Right Door Control Unit | In right door. |
| SDAR Control Unit | Left side of trunk. |
| Steering Column Module | Below steering wheel. |
| Universal Portable CTEL Interface (UPCI [UHI]) Control Module | Front of trunk. |
| Upper Control Panel Control Unit | In center of dash. |
| Vario Roof Control Module | Left rear bulkhead. See Figure. |
| Xenon Headlamp Control Unit (Left) | Behind left headlamp. |
| Xenon Headlamp Control Unit (Right) | Behind right headlamp. |
| Xenon Headlamp Ignition Module (Left) | In engine compartment, mounted at bottom side of left headlamp. |
| Xenon Headlamp Ignition Module (Right) | In engine compartment, mounted at bottom side of headlamp. |
