Central gateway control unit location/task - GF00.19-P-4100SK: Notes

MODEL 171.4

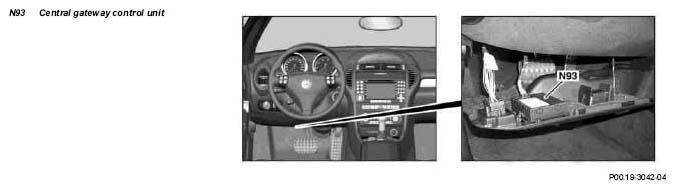

Fig 1: Identifying Central Gateway Control Unit Location
G05026767Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Central gateway control unit, location The central gateway control unit (N93) is located at the lower instrument panel cover at the drivers side.
Central gateway control unit, task   GF00.19-P-4100-01SK
