Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Front Prefuse Box (F32) |
Right side of engine compartment. See Figure. |

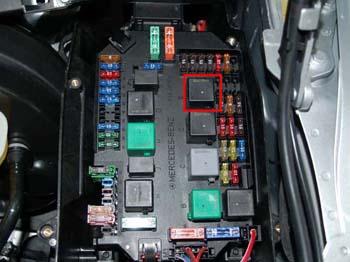

| Front SAM Control Module W/Fuse & Relay Module (N10/1) |
Left rear of engine compartment. See Figure. |
| Rear SAM Control Unit (N10/2) |
Center front of trunk. See Figure. |
