Remove/install injection system control unit - AR07.08-P-7008TS
ENGINES 272.922/943/964/972/944 in MODEL 211
ENGINES 273.960/962 in MODEL 211
ENGINES 272.943/964, 273.960 in MODEL 219
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Read out transfer variant coding of ME-SFI [ME] control unit (N3/10) using STAR DIAGNOSIS | When replacing the ME-SFI [ME] control unit (N3/10). |
|
| 1.2 | Turn key in ignition lock to position "0" | When ME-SFI [ME] control unit (N3/10) is reused. | |
| 2 | Remove air filter housing | AR09.10-P-1150TS | |

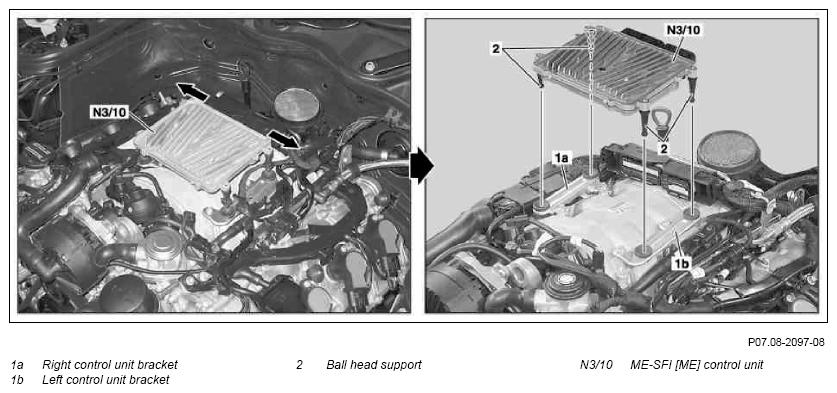

| 3 | Move shift interlocks of electrical connectors at ME-SFI [ME] control unit (N3/10) in direction of arrow, and disconnect electrical connectors from ME-SFI [ME] control unit (N3/10) | ||
| 4 | Pull out ME-SFI [ME] control unit (N3/10) upwards out of right control unit bracket (1a) and left control unit bracket (1b) | ||
| 5 | Detach ball-type support braces (2) from ME- SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| *BA07.08-P-1001-01A | |||
| 6 | If necessary, detach right control unit bracket (1a) and left control unit bracket (1b) from intake manifold | *BA07.08-P-1002-01A | |
| 7 | Install in the reverse order | ||
| 8 | Perform sensor rotor adaptation using STAR DIAGNOSIS | When replacing the ME-SFI [ME] control unit (N3/10). | |
| 9 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| 10 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run | When replacing the ME-SFI [ME] control unit (N3/10). |
CONTROL UNIT
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA07.08-P-1001-01A | Ball head support to control unit | Nm | 4 | 4 |
| BA07.08-P-1002-01A | Bolt, control unit bracket to resonance intake manifold | Nm | 8 | 8 |
