Remove/install injection system control unit - AR07.08-P-7008P

ENGINE 611 in MODEL 203

ENGINE 612, 646 in MODEL 203, 209

ENGINE 111 in MODEL 203

ENGINE 112 in MODEL 203, 209

ENGINE 113 in MODEL 203, 209

ENGINE 113.989 in MODEL 171.473

ENGINE 156 in MODEL 209

Shown on model 203

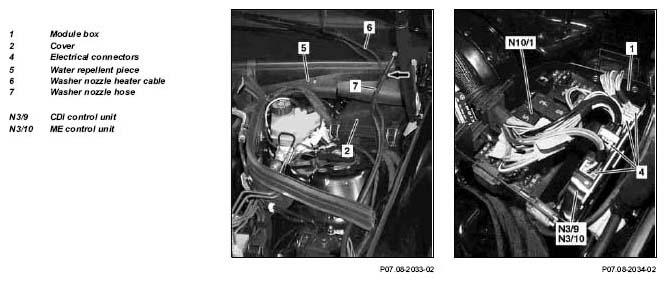

Fig 1: Identifying CDI And ME Control Unit, Module Box, Cover And Washer Nozzle Heater Cable And Hose - Shown On Model 203

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Move windshield wipers to vertical position	Except model 171.473.
2	Detach electric cable for washer nozzle heater (6) and washer nozzle hose (7) from water guard (5) (arrow) and place to the side	Except model 171.473.
3	Take off cover (2)	Installation:  Check cover gasket, replace if damaged.
		To do this unlock cover (2).
4.1	Lift CDI control unit (N3/9) out of module box (1)	Engine 611, 612, 646
4.2	Lift ME control unit (N3/10) out of module box (1)	Engines 111, 112, 113, 156
5	Disconnect electrical connectors (4).	To do unlock electrical connectors (4).
6.1	Remove CDI control unit (N3/9) from module box (1)	Engine 611, 612, 646
6.2	Remove ME control unit (N3/10) from module box (1)	Engines 111, 112, 113, 156
7	Install in the reverse order
8	Read out fault memory	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS system	*WH58.30-Z-1048-13A
