Head-on collision, function - GF91.60-P-2006Q

MODEL 209.3 /4 up to 31.5.04

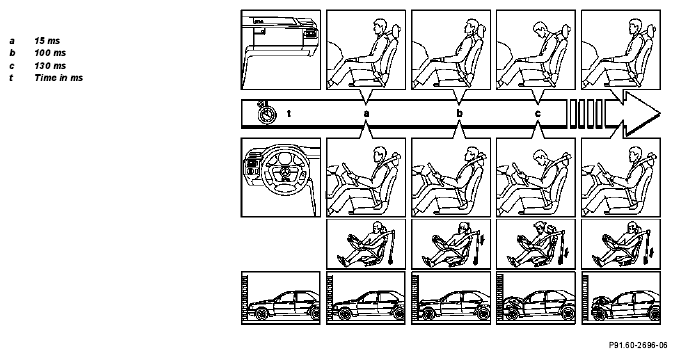

Moderately severe head-on collision shown on model 202.0

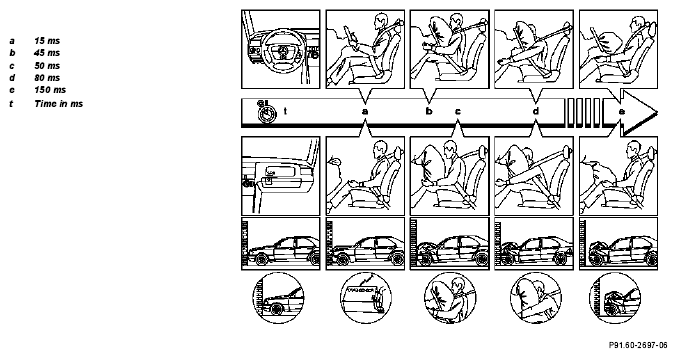

Severe head-on collision shown on model 202.0

Moderately severe head-on collision  (1st triggering threshold) In the event of a moderately severe head-on collision the restraint systems control unit (N2/7) registers moderate deceleration. In this type of impact the seat belt restraining system function in combination with the emergency tensioning retractors ensures the best possible degree of passenger safety. The restraint systems control unit (N2/7) sends the ignition pulse to the following system components:

• The driver ETR squib (R12/1) and the front passenger ETR squib (R12/2)
• The left rear ETR squib (R12/6) and the right rear ETR squib (R12/7)

The driver and passenger emergency tensioning retractors will only be deployed if the occupants are wearing their seat belts.

Protection for non-belted vehicle occupants

A seat belt buckle query is performed at the driver seat and front passenger seat.

Driver

If the driver seat belt buckle restraint systems switch (S68/3) is not operated, in a moderately severe head-on collision the first stage of the driver airbag (driver airbag squib 1 (R12/13)) is deployed instead of the driver ETR [GUS] squib (R12/1).

FRONT PASSENGER

If the front passenger seat belt buckle restraint systems switch (S68/4) is not operated during a moderately severe head-on collision, the first stage of the front passenger airbag (front passenger airbag squib 1 (R12/4)) will be deployed instead of the front passenger ETR [GUS] squib (R12/2). This only applies when the front passenger seat is recognized by the passenger seat occupied and child seat recognition (B48) as occupied.

Severe head-on collision  (2nd or 3rd triggering threshold) In the event of a severe front impact the restraint systems control unit (N2/7) registers a major deceleration. In this type of impact the airbag and seat belt system restraining functions in combination with the emergency tensioning retractors ensure the best possible degree of passenger safety. The restraint systems control unit (N2/7) sends the ignition pulse to the following system components:

• driver airbag squib 1 (R12/13)
• front passenger airbag squib 1 (R12/4) (if latch plate has been inserted or seat has been recognized as occupied)
• driver ETR squib (R12/1)
• front passenger ETR squib (R12/2) (if latch plate has been inserted)
• left rear ETR squib (R12/6)
• right rear ETR squib (R12/7)

If necessary because of the severity of the impact, the restraint systems control unit (N2/7) also sends the ignition pulse to the following system components:

• driver airbag squib 2 (R12/14)
• front passenger airbag squib 2 (R12/5) (only if the latch plate has been inserted or the seat has been recognized as occupied)

If the front passenger seat occupied and child seat recognition sensor (B48) has detected a child seat fitted to the front passenger seat, the airbag at the front passenger side will never be deployed.

	Driver airbag, location/task/design/function		GF91.60-P-4001Q
	Front passenger airbag, location/task/design/ function		GF91.60-P-4003Q
	Seat belt buckle switch, location/task		GF91.60-P-4013Q
	Seat occupancy monitor with child-restraint recognition feature, location/task/design/ function		GF91.60-P-4008Q
	SRS indicator/warning lamp, location/task		GF91.60-P-4011Q
	Airbag OFF indicator lamp, location/task	Model 209.3	GF91.60-P-4012Q
		Model 209.4	GF91.60-P-4012QA
	Supplemental restraint systems control unit, location/task/design	Model 209.3	GF91.60-P-4018Q
		Model 209.4	GF91.60-P-4018QA
