Rear end collision, function - GF91.60-P-2004Q
MODEL 209.3 /4 up to 31.5.04

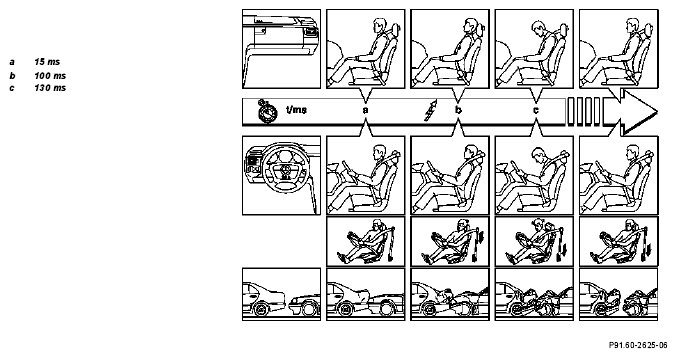

Chronological behavior over time of emergency tensioning retractor during a rear end collision, shown on model 202.0
In the event of a rear end collision, the restraint systems control unit (N2/7) records a high level of acceleration in the direction of motion. When the first triggering threshold is exceeded the restraint systems control unit (N2/7) issues a triggering pulse to the following system components:
- Driver ETR [GUS] squib (R12/1)
- Front passenger ETR [GUS] squib (R12/2)
However, this is only the case when the respective seat belt buckle is plugged in.
When the second triggering threshold is exceeded, the restraint systems control unit (N2/7) also issues a triggering pulse to the following system components:
- left rear ETR squib (R12/6)
- right rear ETR squib (R12/7)
The emergency tensioning retractors in the rear are also triggered when the respective seat belt buckles are not plugged in.
| Front emergency tensioning retractor, location/ task/design/function | GF91.40-P-4000Q | ||
| Rear Emergency Tensioning Retractors, location/task/design/function | GF91.40-P-4001Q | ||
| Seat occupancy monitor with child-restraint recognition feature, location/task/design/ function | GF91.60-P-4008Q | ||
| Supplemental restraint systems control unit, location/task/design | Model 209.3 | GF91.60-P-4018Q | |
| Model 209.4 | GF91.60-P-4018QA |
