Seat adjustment, function - GF91.29-P-2005Q
MODELS 209.3 /4
with CODE (275c) Electric adjustable driver seat, steering column and exterior mirrors with memory
with CODE (242b) Electric adjustable front passenger seat with memory
Function

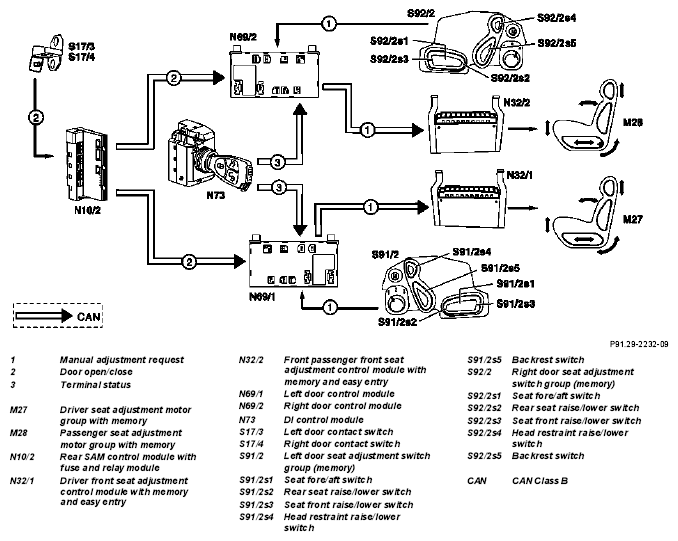

The driver seat can be manually adjusted via the left door seat adjustment switch group (memory) (S91/2), the front passenger seat via the right door seat adjustment switch group (memory) (S92/2).
Switch actuation shown using driver seat as example
By pressing the seat fore/aft switch (S91/2s1) the driver's seat can be moved forward or back. By pressing the rear seat raise/lower switch (S91/2s2) the rear seat height can be adjusted, by using the seat front raise/lower switch (S91/2s3) the front seat height can be set. By pressing the head restraint raise/lower switch (S91/2s4) the head restraints can be moved up or down. By pressing the backrest switch (S91/2s5) the backrest angle can be set.
The adjustment request by means of the left door seat adjustment switch group (memory) (S91/2) is forwarded from the left door control module (N69/1) via the CAN Class B to the front seat adjustment control module with memory and driver-side easy entry (N32/1), which then accordingly actuates the driver seat adjustment motor group with memory (M27).
Switch actuation shown using front passenger seat as example
By pressing the seat fore/aft switch (S92/2s1) the front passenger's seat can be moved forward or back. By pressing the rear seat raise/ lower switch (S92/2s2) the rear seat height can be adjusted, by using the seat front raise/lower switch (S92/2s3) the front seat height can be set. By pressing the head restraint raise/lower switch (S92/2s4) the head restraints can be moved up or down. By pressing the backrest switch (S92/2s5) the backrest angle can be set.
The adjustment request by means of the right door seat adjustment switch group (memory) (S92/2) is forwarded from the right door control module (N69/2) via the CAN Class B to the front seat adjustment control module with memory and front passenger seat easy entry (N32/2), which then accordingly actuates the front passenger seat adjustment motor group with memory (M28).
| Lockup recognition, function | GF91.29-P-3007Q | ||
| Pre block cutout, function | GF91.29-P-4003Q | ||
| Front seat adjustment switch group, location/ design/function | GF91.29-P-2100Q | ||
| Left front seat adjustment control module, with memory location/task | On vehicles with code (275c) electric adjustable driver's seat, steering column and outside rearview mirrors with memory. | GF91.29-P-2106Q | |
| Right front seat adjustment control module, with memory location/task | On vehicles with code (242b) electric adjustable front passenger's seat with memory. | GF91.29-P-2107Q | |
| Left door control module, location/task | GF72.29-P-4122Q | ||
| Right door control module, location/task | GF72.29-P-4123Q | ||
| Rear SAM control module with fuse and relay module, location/task | Model 209.3 | GF54.21-P-4130Q | |
| Model 209.4 | GF54.21-P-4130QA |
