Switch for retractable rear head restraints, location/task/design/function - GF91.16-P-4101PP
MODELS 203, 209.3

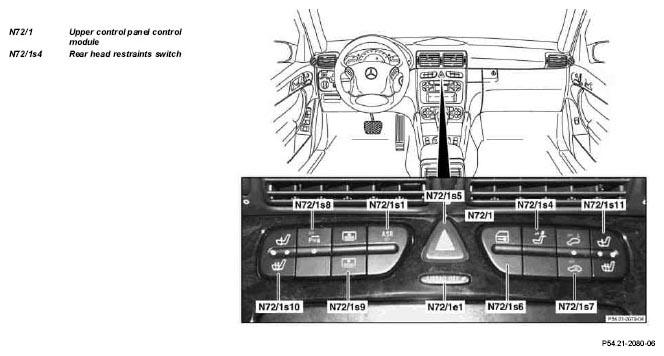

Shown on model 203
| Switch for retractable rear head restraints, location | The rear head restraints switch (N72/1s4) is located in the upper control panel control module (N72/1). | ||
| Switch for retractable rear head restraints, task | Transmitting the actuation request to fold down the rear head restraints. | ||
| Switch for retractable rear head restraints, design | The rear head restraints switch (N72/1s4) is designed as a push-button switch. | ||
| Switch for retractable rear head restraints, function | The pressing of the rear head restraints switch (N72/1s4) is read in by the upper control panel control module (N72/1) and relayed to the CAN-class B as a message. On releasing the rear head restraints switch (N72/1s4), the message is erased again. |
