Valve for head restraint release, location/task/design/function - GF91.16-P-4106PP
MODELS 203, 209.3

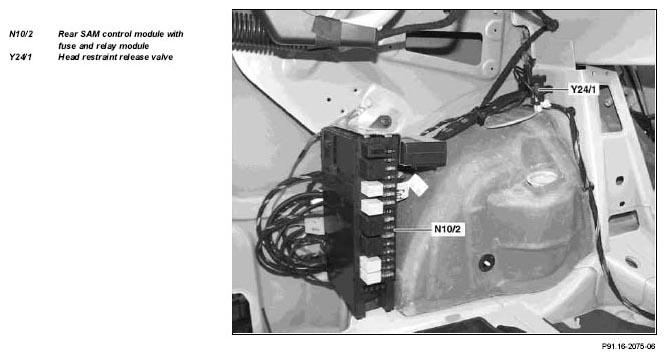

Shown on model 203
| Valve for head restraint release, location | The head restraint release valve (Y24/1) is located in the luggage compartment on the left in direction of travel above the wheelhouse. | ||
| Valve for head restraint release, task | Closing and opening the pneumatic line to the head restraint elements. | ||
| Valve for head restraint release, design | The head restraint release valve (Y24/1) is an electromagnetically actuated 3/2-way pneumatic valve. | ||
| Valve for head restraint release, function | If a voltage is applied to the solenoid of the head restraint release valve (Y24/1), the pneumatic line to the head restraint elements is opened. If a voltage is no longer applied, the head restraint release valve (Y24/1) is closed again by spring load. |
