Window airbags, location/task/design/function - GF91.60-P-4014Q: Notes

MODEL 209.3

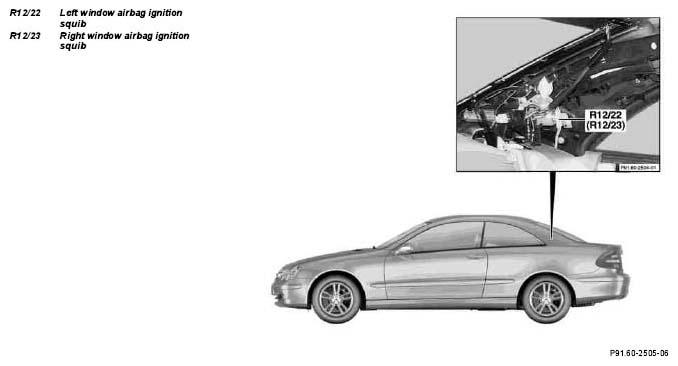

Fig 1: Identifying Window Airbags Location

	Window airbag position	The gas generators with the left window airbag squib (R12/22) and right window airbag squib (R12/23) are located in the left and right C-pillar The associated air hose is located in the side roof frame
	Window airbag - task		GF91.60-P-4014-02Q
	Window Airbag - Design		GF91.60-P-4014-03Q
	Window airbag - function		GF91.60-P-4014-04Q
