Wheel sensor, location/design/function - GF40.15-P-3201A

MODEL 210.074/274, 215, 220, 240 with CODE (475) Tire pressure monitor

MODEL 211, 230 up to 31.5.05

with CODE (475) Tire pressure monitor

except CODE (494) USA version

except CODE (498) Japan version

MODEL 211, 230 up to 30.6.05

with CODE (475) Tire pressure monitor

with CODE (494) USA version

with CODE (498) Japan version

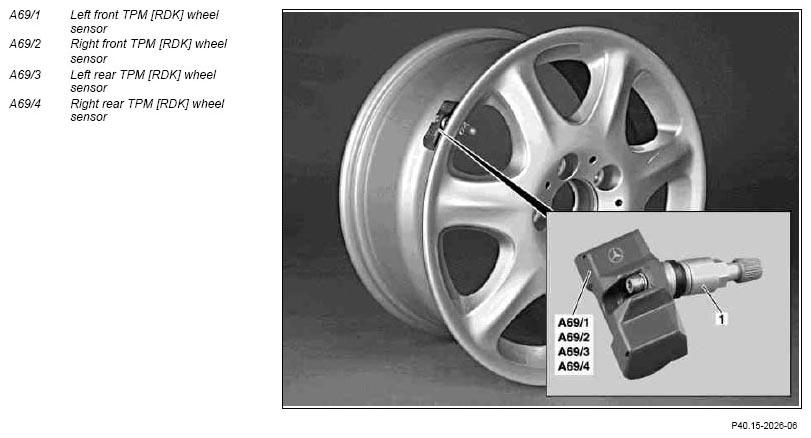

Fig 1: Locating TPM Wheel Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Wheel sensor, location	Screwed on securely inside the respective assigned rim.
Wheel sensor, design		GF40.15-P-3200-03A
Wheel sensor, function		GF40.15-P-3200-02A
