Parking lock, location/task/design/function - GF27.10-P-5100N
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 463.303/340/341

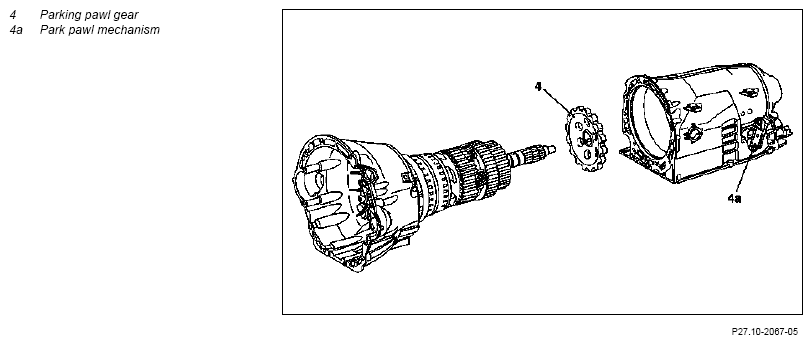

| Park pawl, location | The park pawl gear (4) and park pawl mechanism (4a) are located in the rear area of the transmission housing. | |
| Park pawl, task | Secures the vehicle mechanically to prevent it from rolling in addition to the parking brake. | |
| Park pawl, design | GF27.10-P-5100-03N | |
| Park pawl, function | GF27.10-P-5100-02N |
