Shift detent, location/task/design/function - GF27.60-P-5101NT
TRANSMISSION 722.9 in MODEL 171.4, 203 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 219
| Shift detent, location | The shift detent is integrated in the electronic selector lever module control unit (N15/5). | |
| Shift detent, task | Locating the selector lever positions "R", "N" and "D" | |

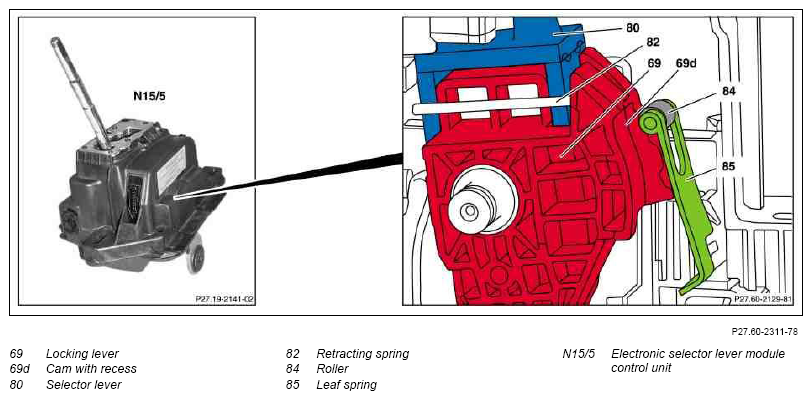

| Shift detent, design | The shift detent consists of the locking lever (69) permanently connected with the selector lever (80), a leaf spring (85) clamped in the basic housing and a roller (84) inserted in the leaf spring (85). | |
| Shift detent, function | GF27.60-P-5101-04NT |
