Circuit Protection Devices

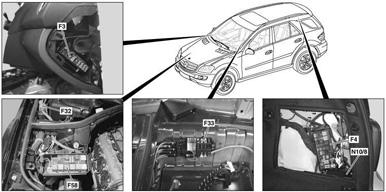

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Battery Compartment Prefuse Box (F33) | Behind right front seat. See Figure. |
| Cockpit Fuse Box (F3) | Behind right end of dash. See Figure. |
| Engine Compartment Fuse & Relay Box (F58) | Right side of engine compartment. See Figure. |
| Front Prefuse | Right rear of engine compartment. See Figure. |
| Load Compartment Fuse & Relay Box (F4) | Right side of cargo area. See Figure. |
