Driver-side SAM control module with fuse and relay module, location/task/design - GF54.21-P-4109R: Notes

MODEL 230

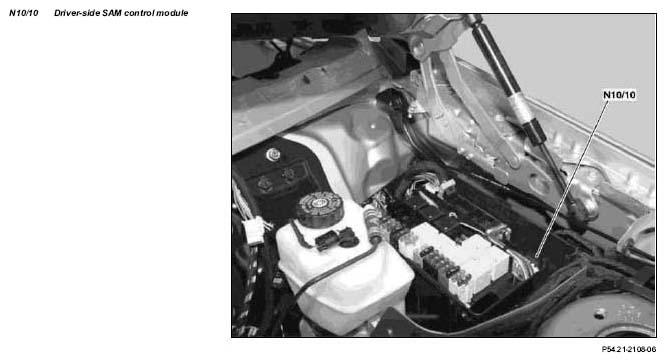

Fig 1: Identifying Driver-Side SAM Control Module - Model 230

Courtesy of MERCEDES-BENZ USA

	Driver-side SAM control module with fuse and relay module, location	The driver-side SAM control module (N10/10)  is located in the engine compartment near the hood hinge on the left side of the vehicle in the direction of travel.
	Driver-side SAM control module with fuse and relay module, task		GF54.21-P-4109-01R
	Driver-side SAM control module with fuse and relay module, design	The driver-side SAM control module (N10/10)  is contained in a sturdy plastic housing. Various fuses and relays are attached to the control module on a supporting bracket.
