Bottom control panel control unit design - GF54.21-P-4116-02R
Design:

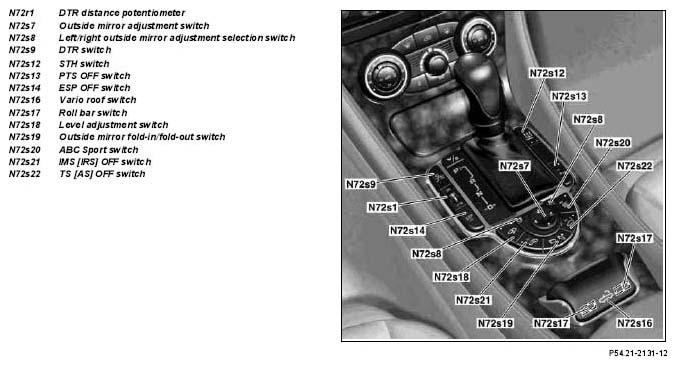

Fundamentally, the bottom control panel control unit (N72) consists of the series block and both of the specially equipped blocks with the switches:
- DTR Distance potentiometer (N72r1)
- Outside mirror adjustment switch (N72s7)
- Left/right outside mirror adjustment selection switch (N72s8)
- DTR switch (N72s9)
- STH switch (N72s12)
- PTS OFF switch (N72s13)
- ESP OFF switch (N72s14)
- Vario roof switch (N72s16)
- Rollover bar switch (N72s17)
- Level positioning switch (N72s18)
- Outside mirror fold-in/fold-out switch (N72s19)
- ABC Sport switch (N72s20)
- IRS OFF switch (N72s21)
- AS OFF switch (N72s22)
The built-in switches in the bottom control panel control unit (N72) have a search lighting and a partial function lighting.
