Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

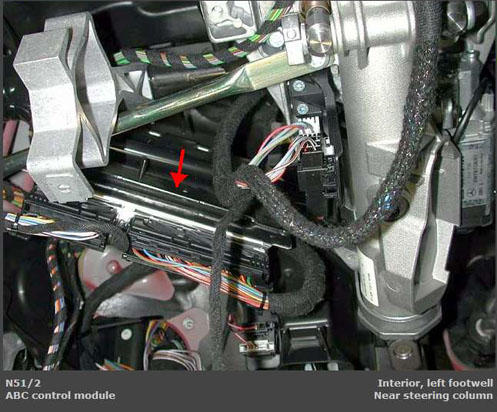

| ABC Control Module | Near steering column. See Figure. |

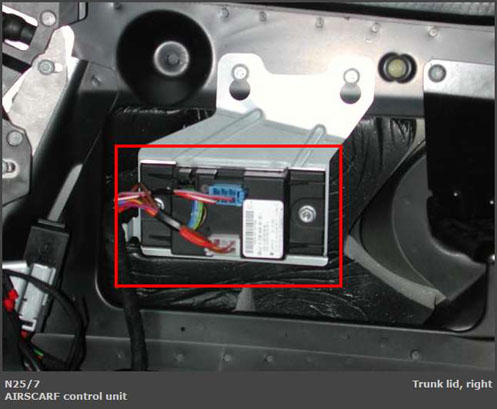

| AIRSCARF Control Unit | Right trunk lid. See Figure. |
| Audio Gateway Control Module | Stowage compartment behind driver seat. |
| Blower Regulator | Mounted to blower motor. |
| Central Gateway Control Module | Right front footwell. |
| DC/DC Converter Control Module | Under left side of dash. |
| Driver-Side SAM Control Module (N10/10) | Under fuse & relay box. See Figure. |

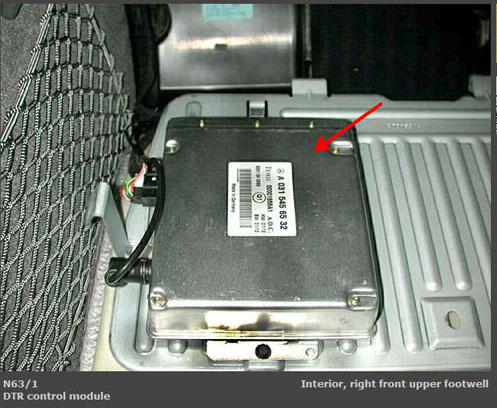

| DTR Control Module | Right front upper footwell. See Figure. |
| E-Call Control Module | Under rear of center console. |

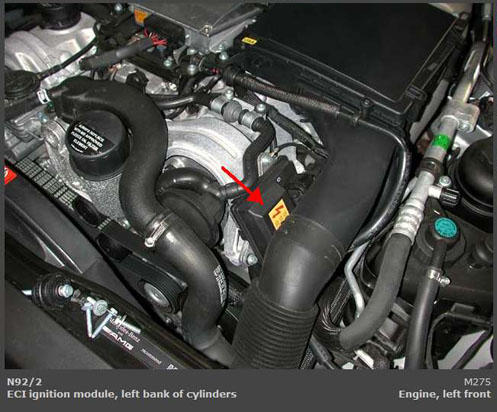

| ECI Ignition Module, Left Bank Of Cylinders (M275) | Left front of engine. See Figure. |

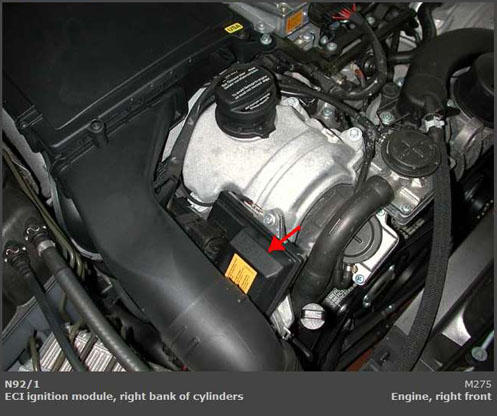

| ECI Ignition Module, Right Bank Of Cylinders (M275) | Right front of engine. See Figure. |

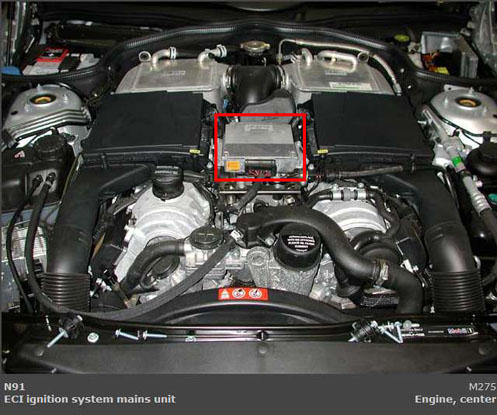

| ECI Ignition System Mains Unit | Top center of engine. See Figure. |
| Electric Control Unit (VGS) (Y3/8) | In transmission. See Figure. |
| Electric Control Unit (Y3/6) | In transmission. See Figure. |

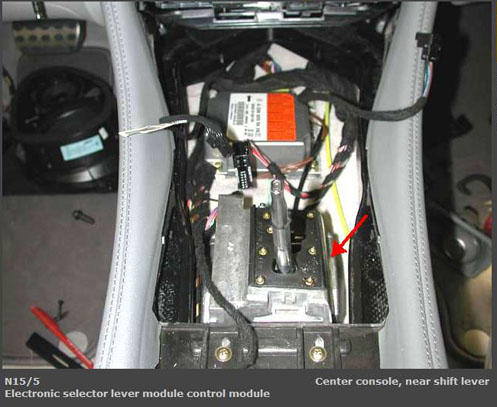

| Electronic Selector Lever Module Control Module | Near base of shift lever. See Figure. |
| Emergency Call System Control Unit (N123/4) | Under rear of center console. See Figure. |
| ESP, SPS & BAS (ESP, PML & BAS) Control Module | Left rear of engine compartment. |
| ETC (EGS) Control Module | Right footwell. See Figure. |
| Frequency Switchover Control Module | Behind passenger seat. |

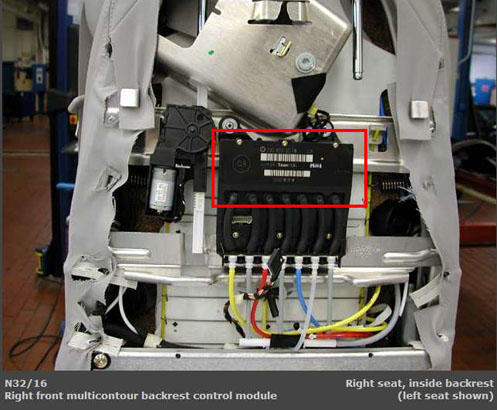

| Front Multicontour Backrest Control Module (Left/Right) | Inside respective backrest. See Figure. |
| Fuel Pump Control Unit (N118) | Under right rear of vehicle. See Figure. |
| Fully Integrated Transmission Control (VGS) Control Unit (Y3/8n4) | Integral to electric control unit (VGS). See Figure. |
| Keyless Go Control Module | Left side of trunk. See Figure. |
| Left Antenna Amplifier Module | Under left side of dash. |
| Left Door Actuator | Left door, door handle. |
| Left Door Control Module (N69/1) | Left door. See Figure. |
| Left Front Seat Adjustment Control Module W/Memory (N32/1) | Under left front seat. See Figure. |

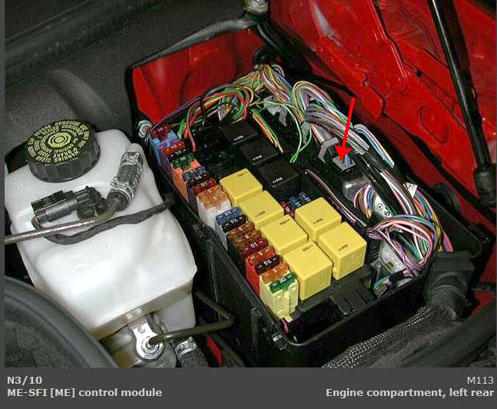

| ME-SFI (ME) Control Module (M113) | Left rear of engine compartment. See Figure. |

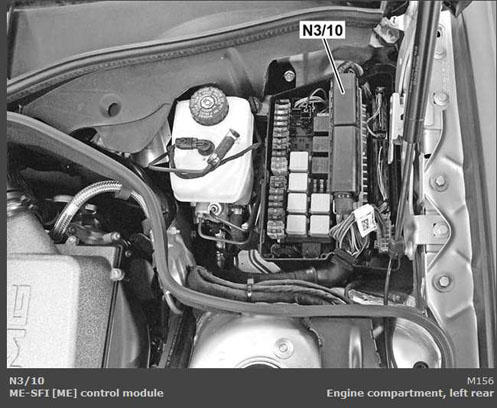

| ME-SFI (ME) Control Module (M156) | Left rear of engine compartment. See Figure. |

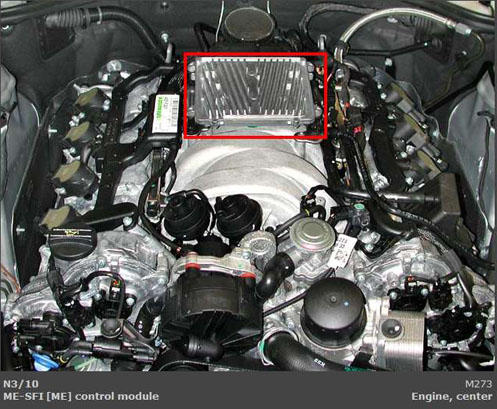

| ME-SFI (ME) Control Module (M273) | Top of engine. See Figure. |
| Navigation Processor | Left side of trunk. |
| Passenger-Side SAM Control Module (N10/11) | Under fuse & relay box. See Figure. |
| PSE Control Module (Combined) | Left side of trunk. |

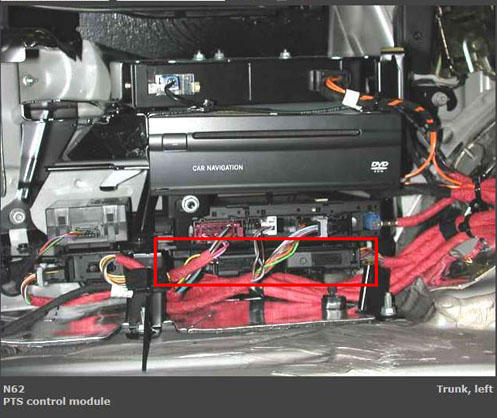

| PTS Control Module | Left side of trunk. See Figure. |
| Rear SAM Control Module (N10/8) | Behind passenger seat. See Figure. |
| Restraint Systems Control Module (N2/7) | Under front of center console. See Figure. |
| Right Antenna Amplifier Module (A2/65) | Under right side of dash. See Figure. |
| Right Door Actuator | Right door, door handle. |
| Right Door Control Module (N69/2) | Right door. See Figure. |
| Right Front Seat Adjustment Control Module W/Memory (N32/2) | Under right front seat. See Figure. |

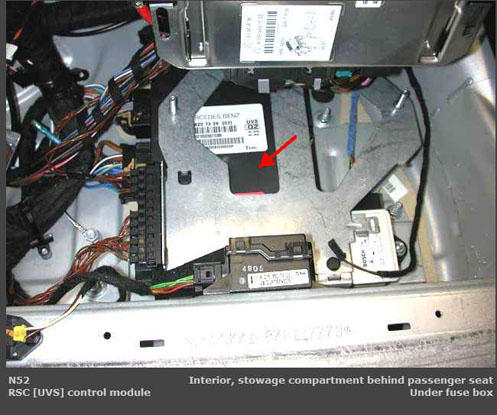

| RSC (UVS) Control Module | Behind passenger seat. See Figure. |
| RVC (UVS) Valve Block | Left side of trunk. |
| SBC Control Module | Part of SBC hydraulic unit. |
| SDAR Control Unit | Left side of trunk. See Figure. |
| Steering Column Module | Top of steering column. |
| Steering Wheel Gear Shift Signal Processing Module | Inside steering wheel. |

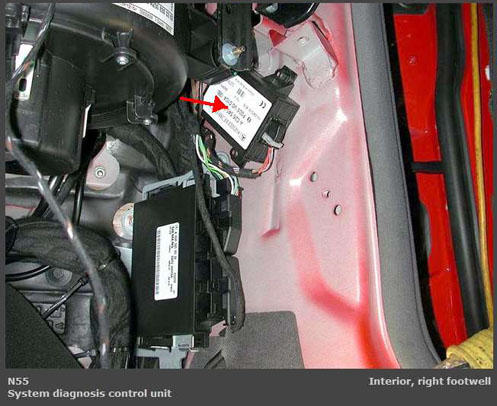

| System Diagnosis Control Unit | Right footwell. See Figure. |

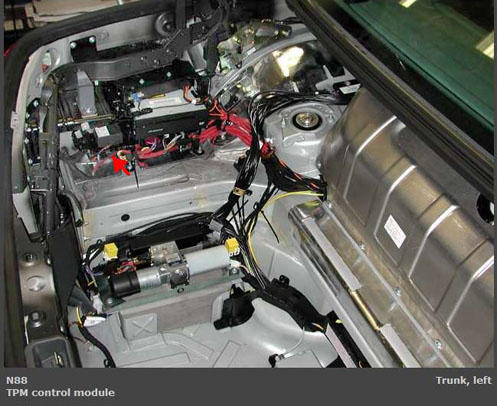

| TPM Control Module | Left rear of trunk. See Figure. |
| Universal Portable CTEL Interface (UPCI (UHI)) Control Module (MHI) | Behind passenger seat. |

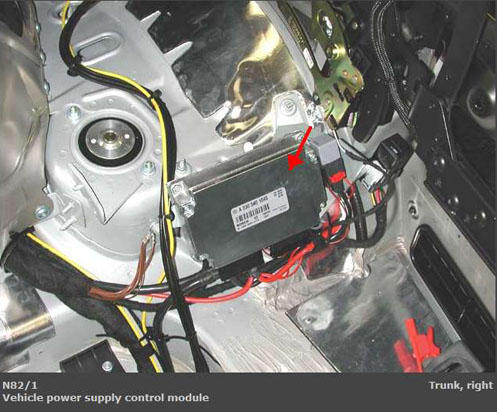

| Vehicle Power Supply Control Module | Right side of trunk. See Figure. |
| Voice Control System Control Module | Under rear of center console. |
| Weight Sensing System (WSS) Control Unit (N110) | Under right seat. See Figure. |
