Shift pattern display, function - GF27.19-P-5129-03QZ
Transmission 722.6 in model 209.3 (except 209.376) as of 01.06.03, 209.4 (except 209.476), 211, 230 (except 211.076/05/25/276, 230.474/479) as of 01.09.03 except code (428a) steering wheel shift buttons
Shows model 209
The position indicator in the instrument cluster (A1) is actuated by the ETC [EGS] control unit (N15/3) via the Controller Area Network bus class C (engine compartment) (CAN-C).
The program indicator in the instrument cluster (A1) is actuated by the electronic selector lever module control unit (N15/5) likewise via CAN-C.
The program selection performed at the transmission mode switch (S16/5) only remains stored after a driving time of approx. 1 minute and is then displayed again once the engine is started again. The driving time of approx. 1 minute is necessary because of the system.

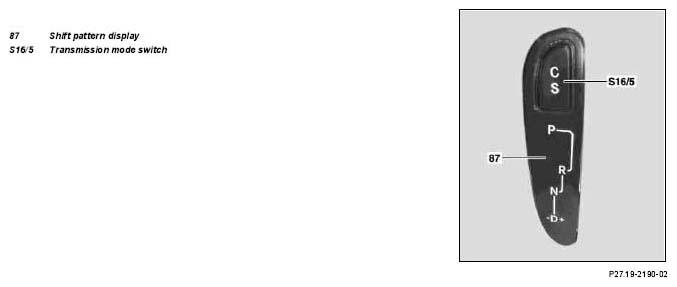

The selector diagram system of symbols (87) is illuminated when the driving lamps are switched on
