Passenger-side SAM control module with fuse and relay module, location/task/design - GF54.21-P-4111R: Notes

MODEL 230

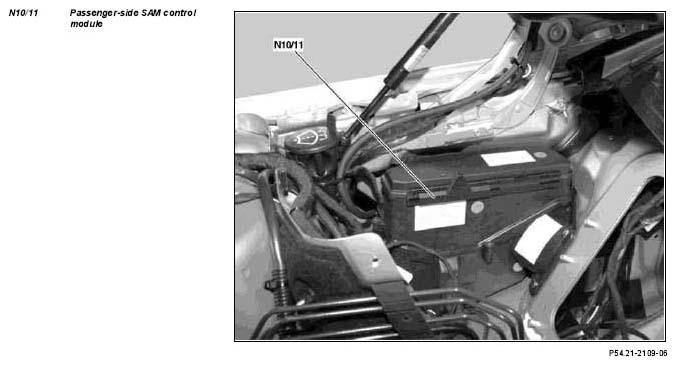

Fig 1: Identifying Passenger-Side SAM Control Module - Model 230

Courtesy of MERCEDES-BENZ USA

	Passenger-side SAM control module with fuse and relay module, location	The passenger-side SAM control module (N10/11)  is located in the engine compartment near the hood hinge on the right side of the vehicle in the direction of travel.
	Passenger-side SAM control module with fuse and relay module, task		GF54.21-P-4111-01R
	Passenger-side SAM control module with fuse and relay module, design	The passenger-side SAM control module (N10/11)  is contained in a sturdy plastic housing. Various fuses and relays are attached to the control module on a supporting bracket.
