Coolant temperature sensor function - GF07.04-P-5026-04M

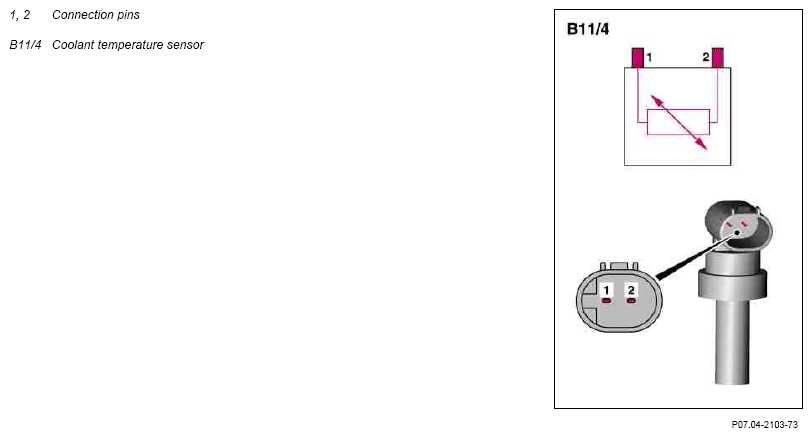

The NTC resistor integrated in the coolant temperature sensor (B11/4) alters its electrical resistance in line with the coolant temperature.
NTC is the abbreviation for "N egative T emperature C oefficient", which means electrical resistance falls as the temperature increases (hot conductor).
Example:
Coolant temperature
Resistor
20°C
3090 Ω ±5%
80°C 320 Ω±5%
