Remove/install pressure differential sensor (DPF) - AR07.04-P-0012GZC
ENGINES 642 in MODEL 164, 251
For a CAT/DPF assembly
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |

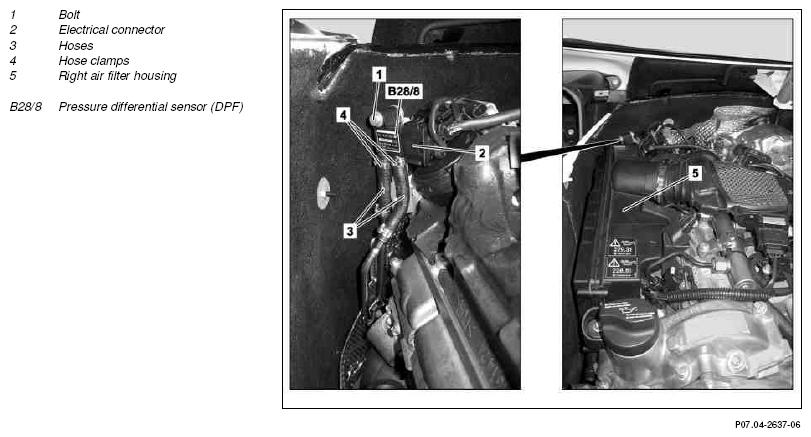

| 1 | Remove RH air filter housing (5) | Model 164 | AR09.10-P-1150GZC |
| Model 251 | AR09.10-P-1150RTC | ||
| 2 | Disconnect electrical connector (2) at pressure differential sensor (DPF) (B28/8) | ||
| 3 | Remove bolt (1) at pressure differential sensor (DPF) (B28/8) | *BA07.04-P-1006-01G | |
| 4 | Remove hose clamps (4) at pressure differential sensor (DPF) (B28/8) | ||
| 5 | Remove hoses (3) at pressure differential sensor (DPF) (B28/8) | ||
| 6 | Remove pressure differential sensor (DPF) (B28/8) | ||
| 7 | Install in the reverse order |
SENSORS
| Number | Designation | Engine 642 with particle filter | |
|---|---|---|---|
| BA07.04-P-1006-01G | Bolt, pressure differential sensor to bracket | Nm | 8 |
