4MATIC side output, function - GF28.10-P-1010AV

MODEL 204.0 with TRANSMISSION 722.960/962/963/964/965 as of model year 2009

MODEL 204.2 with TRANSMISSION 722.962/965 as of model year 2009

MODEL 204.9 with TRANSMISSION 722.960/962/964/965

MODEL 212 with TRANSMISSION 722.960/961/962/971

MODEL 216 with TRANSMISSION 722.961 as of model year 2009

MODEL 221 with TRANSMISSION 722.960/961/962 as of model year 2009

Sectional view of side output

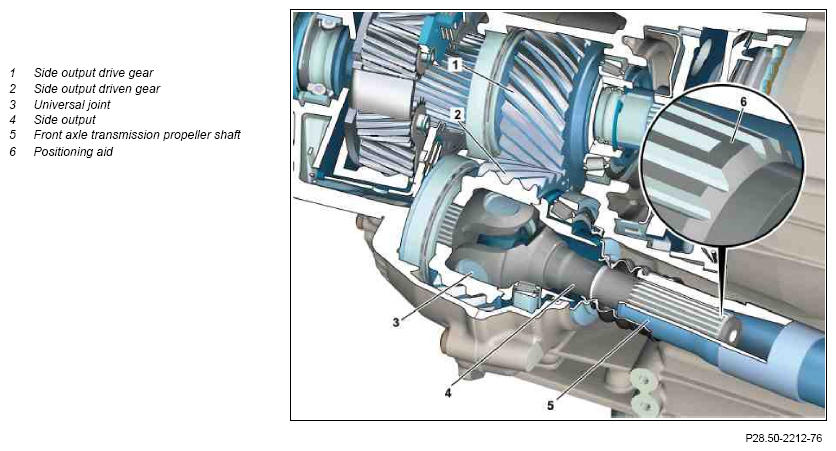

Fig 1: Sectional View Of Side Output

Courtesy of MERCEDES-BENZ USA

Drive shaft, front axle to front axle transmission 4 Side output

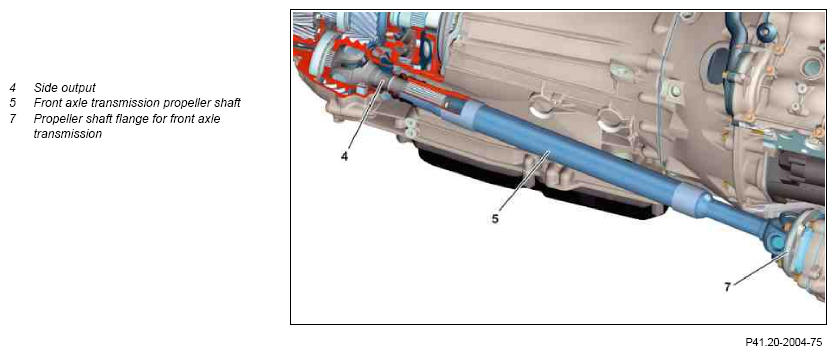

Fig 2: Identifying Drive Shaft, Front Axle And Front Axle Transmission

Courtesy of MERCEDES-BENZ USA

Side output, 4MATIC, general

A propeller shaft (5) is used to transfer torque from the side output (4) of the transfer case to the front axle transmission. The at transmission end universal joint (3) of the drive shaft (5) is integrated into the driven gear (2) of the side output (4).

A 7° spiral bevel gear is used to push the propeller shaft tube onto the joint fork of the side output (4).

The universal joint (3) have to be assembled aligned to each other to ensure that the transferred rotation is uniform.

On the front-axle transmission side the drive shaft (5) is bolted using a propeller shaft flange (7) to the drive pinion of the front axle transmission.

Universal joints (3)

Basically, a universal joint, which runs under an angular offset, generates a non-uniform rotary motion.

If the angles formed between the axes of the propeller shaft tube and the joint forks are equal, and if they are on a common plane, the non-uniformities of the two universal joints are compensated for. The output speed of the drive shaft (5) on the front axle transmission is then uniform.
