Remove/install seat occupancy recognition sensor - AR91.60-P-0720CW

MODEL 204, 207, 212, 218

MODEL 463.202/236/237 up to model year 2013 as of model year 2010,/model refinement package 2012

MODEL 463.222/270/271/303/340/341 As of model year 2010

MODEL 463.306/336

MODEL 463.346 up to model year 2013/FACELIFT 2012

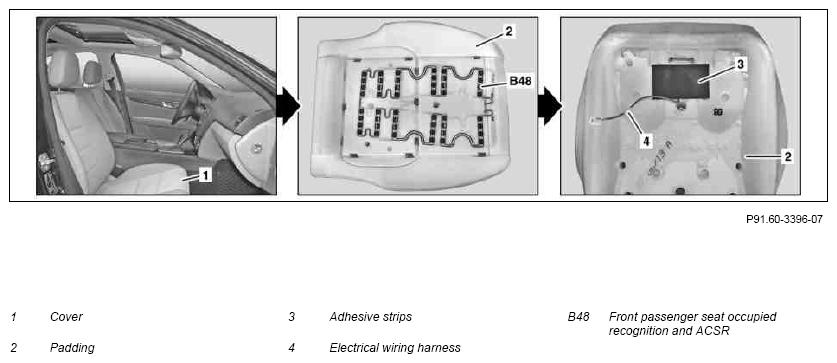

Fig 1: Identifying Seat Occupancy Recognition Sensor Remove/Install Components - Shown On Model 204.052

Courtesy of MERCEDES-BENZ USA

Shown on model 204.052

	Remove/install
1	Remove cover (1) from front passenger seat cushion	MODEL 204, 207, 212, 218 Remove/install front seat cushion cover	AR91.18-P-1800CW
		Remove/install front seat cushion cover MODEL 463	AR91.18-P-1800GP
2	Remove adhesive strip (3)	Replace adhesive strips (3).
3	Guide electrical wiring harness (4) through padding (2)
4	Remove front passenger seat occupied recognition and g] (B48)
5	Install in the reverse order
6	Perform function test with diagnostic system
			AD00.00-P-2000-04A
		Menu sequence: Select SBE/ACSR LIN component Actual values Seat occupancy recognition Weight class: Weight class 0 Front passenger seat unoccupied Weight class 3 Front passenger seat occupied If the front passenger seat (single seat) is occupied by a test person >48 kg, the actual value of the seat occupancy recognition must change from 0= front passenger seat unoccupied, to 3= front passenger seat occupied.
