Remove/install accelerator pedal - AR30.12-P-1321SX

MODEL 216, 221

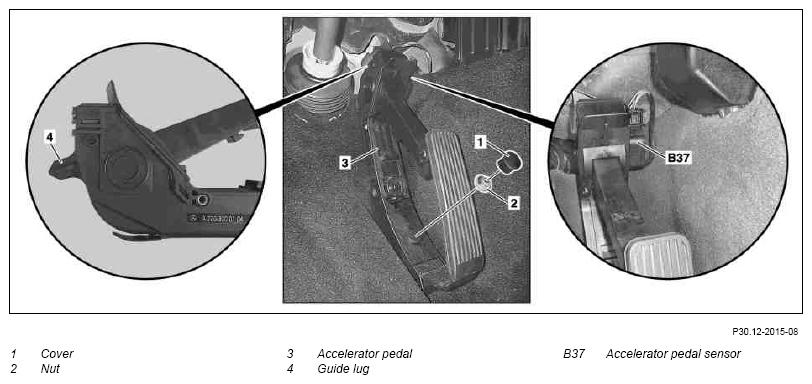

Fig 1: Identifying Accelerator Pedal Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left cover below instrument panel		AR68.10-P-1500SX
2	Detach cover (1)
3	Unscrew nut (2)
4	Separate the electrical connector at the accelerator pedal sensor (B37)
5	Take out accelerator pedal (3)	The accelerator pedal (3) must not be disassembled otherwise it will be damaged. Installation:  The accelerator pedal (3) must be installed with the leading guide (4) in the firewall.
6	Install in the reverse order
