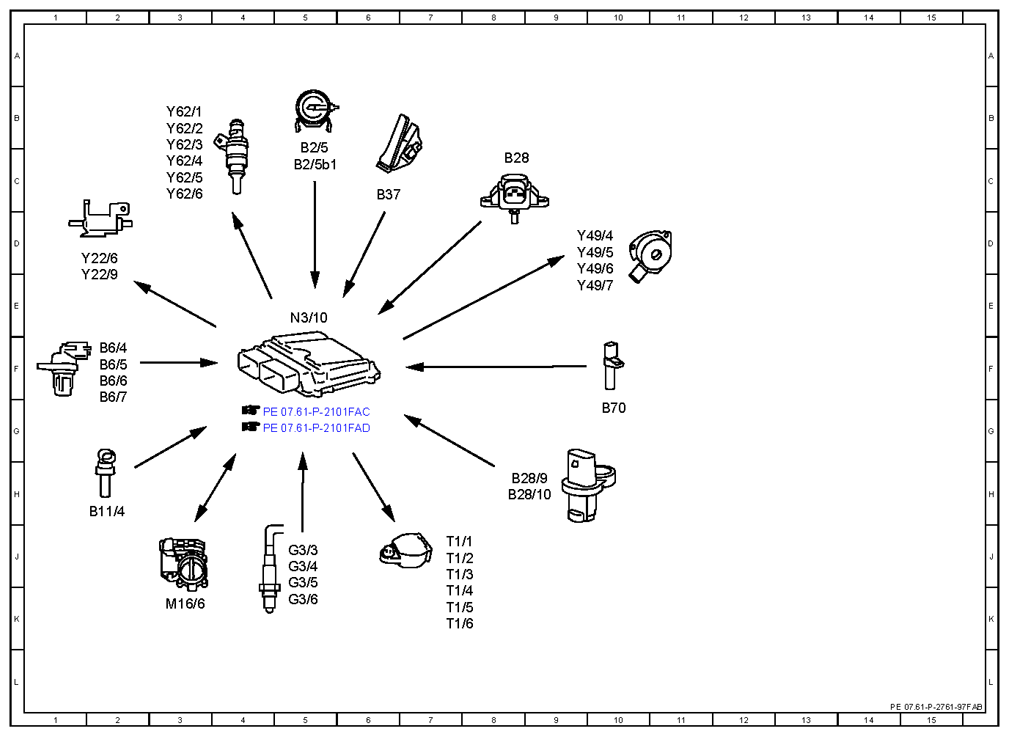

| B11/4 |
Coolant temperature sensor |
2H |
| B2/5 |
Hot film mass air flow sensor |
5C |
| B2/5b1 |
Intake air temperature sensor |
5C |
| B28 |
Pressure sensor |
8C |
| B28/10 |
Right intake manifold tumble flap position sensor |
8H |
| B28/9 |
Left intake manifold tumble flap position sensor |
8H |
| B37 |
Accelerator pedal sensor |
6C |
| B6/4 |
Left intake camshaft Hall sensor |
2F |
| B6/5 |
Right intake camshaft Hall sensor |
2F |
| B6/6 |
Left exhaust camshaft Hall sensor |
2F |
| B6/7 |
Right exhaust camshaft Hall sensor |
2G |
| B70 |
Crankshaft Hall sensor |
10G |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
5J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
5J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
5K |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
5K |
| M16/6 |
Throttle valve actuator |
3K |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| T1/1 |
Cylinder 1 ignition coil |
7J |
| T1/2 |
Cylinder 2 ignition coil |
7J |
| T1/3 |
Cylinder 3 ignition coil |
7J |
| T1/4 |
Cylinder 4 ignition coil |
7K |
| T1/5 |
Cylinder 5 ignition coil |
7K |
| T1/6 |
Cylinder 6 ignition coil |
7K |
| Y22/6 |
Intake manifold switchover valve |
1D |
| Y22/9 |
Intake manifold tumble flap switchover valve |
1E |
| Y49/4 |
Left intake camshaft solenoid |
9D |
| Y49/5 |
Right intake camshaft solenoid |
9D |
| Y49/6 |
Left exhaust camshaft solenoid |
9D |
| Y49/7 |
Right exhaust camshaft solenoid |
9E |
| Y62/1 |
Cylinder 1 injection valve |
3B |
| Y62/2 |
Cylinder 2 injection valve |
3B |
| Y62/3 |
Cylinder 3 injection valve |
3C |
| Y62/4 |
Cylinder 4 injection valve |
3C |
| Y62/5 |
Cylinder 5 injection valve |
3C |
| Y62/6 |
Cylinder 6 injection valve |
3C |
