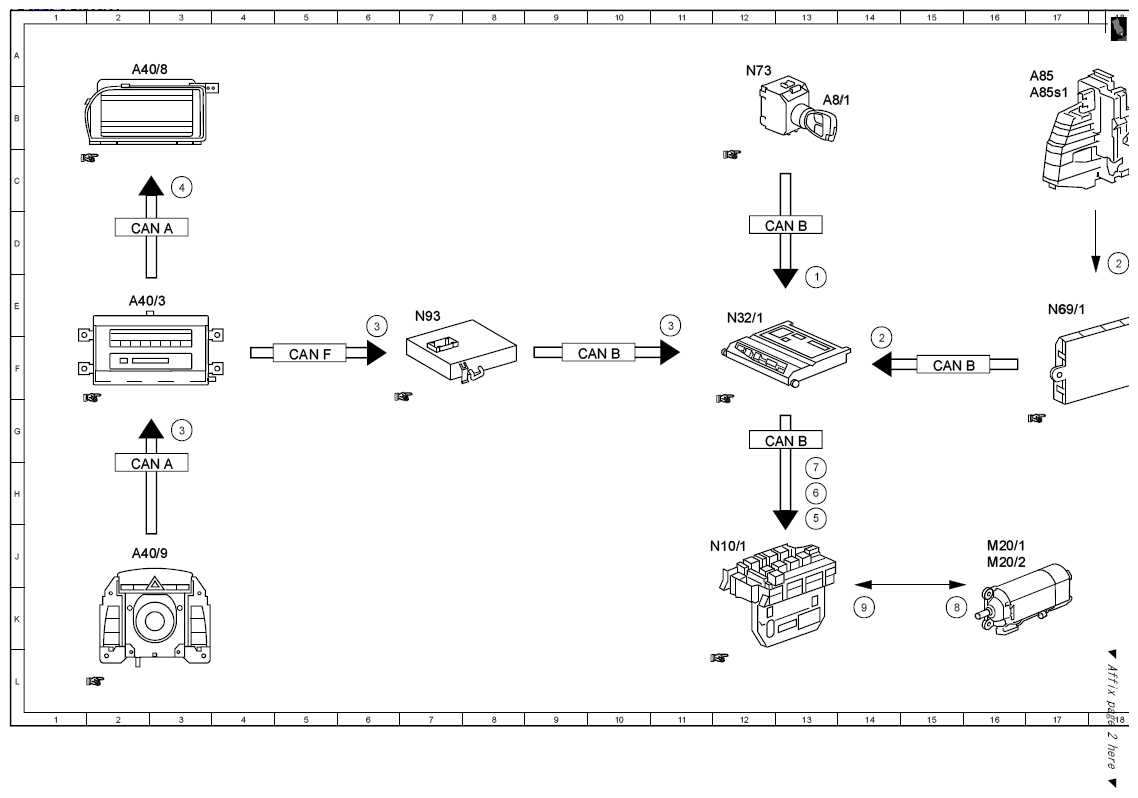

| 1 |
Circuit 15, status |
13E |
| 2 |
Door rotary tumbler switch, status |
18D |
| 2 |
Door rotary tumbler switch, status |
14F |
| 3 |
Easy entry/exit, status |
11E |
| 3 |
Easy entry/exit, status |
6E |
| 3 |
Easy entry/exit, status |
3G |
| 4 |
Status indication, signal |
3C |
| 5 |
Move to entry/exit position, request |
13H |
| 6 |
Move to driving position, request |
13H |
| 7 |
Store driving position, request |
13H |
| 8 |
Steering column motor, actuation |
15K |
| 9 |
Steering column motor, signal |
14K |
| A40/3 |
COMAND control unit |
2E |
| A40/8 |
COMAND display |
2A |
| A40/9 |
Front central operating unit |
2J |
| A8/1 |
Transmitter key |
13B |
| A85 |
Left door lock unit |
17A |
| A85s1 |
Left rotary tumbler switch |
17B |
| CAN A |
Telematics CAN |
2D |
| CAN A |
Telematics CAN |
2H |
| CAN B |
Interior CAN |
15F |
| CAN B |
Interior CAN |
13D |
| CAN B |
Interior CAN |
13G |
| CAN B |
Interior CAN |
10F |
| CAN F |
Central CAN |
5F |
| M20/1 |
Steering column in/out motor |
16J |
| M20/2 |
Steering column up/down motor |
16J |
| N10/1 |
Front SAM control unit with fuse and relay module |
12J |
| N32/1 |
Left front seat control unit |
12E |
| N69/1 |
Left door control unit |
17E |
| N73 |
EIS [EZS] control unit |
12A |
| N93 |
Central gateway control unit |
7E |
