Fuse Assignment Of Front Prefuse Box - GF54.15-P-1256-07CEA

MODEL 204.0/2 as of model year 2010

MODEL 204.3

MODEL 204.9 as of model year 2010

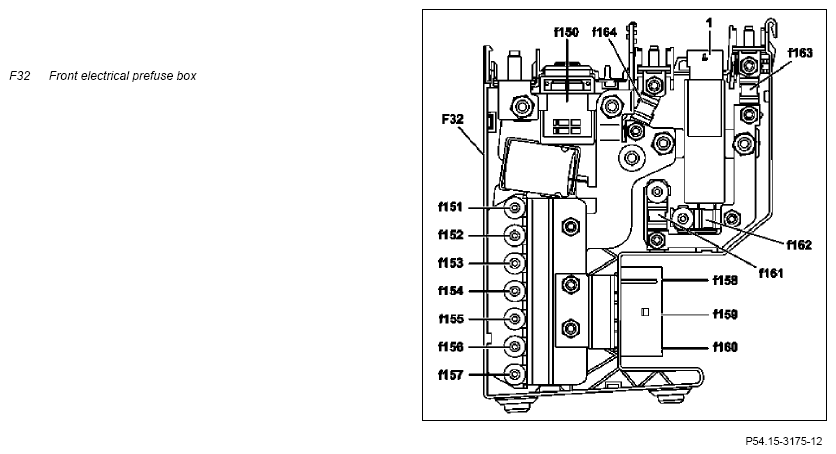

Shown without code (B03) ECO start/stop function

Fig 1: Identifying Front Pre-Fuse Box - Shown Without Code (B03)
G10084522

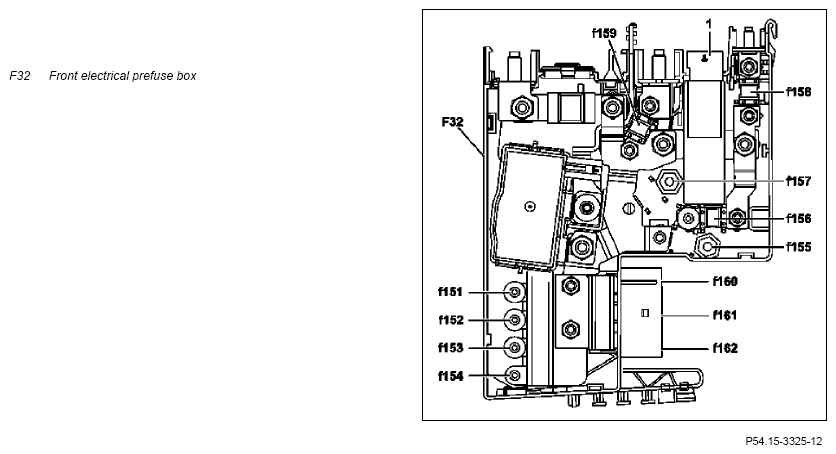

Shown with code (B03) ECO start/stop function

Fig 2: Identifying Front Pre-Fuse Box - Shown With Code (B03)
G10084523
Fuse Circuit Line ID (line fused) Fused function Rating in amperes (A)
f150 30 - Valid without code (B03) ECO start/stop function:
  • Pyrofuse 88 (F32f88)
 400
    35.0 Valid for code (B03) ECO start/stop function:
  • Alternator (G2)
  • Starter (M1)
 200
f151 30 10.0 RD
  • Internal combustion engine and air conditioning fan motor with integrated control (M4/7)
 100
f152 30 16.0 RD
  • Front SAM control unit with fuse and relay module (N10/1)
 150
f153 30 - Valid without code (B03) ECO start/stop function:
  • Reserve
 -
    6.0 RD Valid for code (B03) ECO start/stop function and front battery position:
  • Front SAM control module with fuse and relay module (N10/1)
 60
f154 30z 6.0 RD Valid without code (B03) ECO start/stop function and front battery position:
  • Front SAM control module with fuse and relay module (N10/1)
 60
    16.0 RD Valid for diesel engine and code (B03) ECO start/stop function:
  • PTC heater booster (R22/3)
 150
f155 30 -
  • Reserve
 -
f156 30 16.0 RD Valid for diesel engine and without code (B03) ECO start/stop function:
  • PTC heater booster (R22/3)
 150
    30g Valid for code (B03) ECO start/stop function:
  • Front SAM control module with fuse and relay module (N10/1)
 100
f157 30 12.0 RD Valid for model 204.902/982/984 or for model 204.987 as of 1.7.10 up to 31.5.11 with code (494) USA version or code (460) Canada version):
  • Electrohydraulic power steering (A91/1)
 100
      Valid for model 204.0/2/3 with engine 274.9, model 204.002 as of 01.12.12 with engine 651 with transmission 722.9, model 204.002/202/302 as of 01.12.12 with engine 651 with transmission 711.6, model 204.9 (except model 204.902/982/984) and model 204.987 as of 1.7.10 up to 31.5.11 with code (494) USA version or code (460) Canada version:
  • Electrical power steering control unit (N68)

f158 30 4.0 RD Valid without code (B03) ECO start/stop function:
  • Blower regulator (A32n1)
 50
  30g 16.0 RD Valid for code (B03) ECO start/stop function:
  • Rear SAM control unit with fuse and relay module (N10/2)
 150
f159 30 4.0 RDGN Valid for code (965) Electrical preinstallation for rental vehicles and without code (B03) ECO start/stop function:
  • Special-purpose vehicle multifunction control unit (N26/9)
 50
    25.0 RD Valid for code (B03) ECO start/stop function:
  • Additional battery relay (K57/2)
 200
f160 30 6.0 RD Valid for model 204.0/2/3 as of 1.6.12 without code (B03) ECO start/stop function:
  • Interior compartment fuse box (F34)
 60
    4.0 RD Valid for code (B03) ECO start/stop function:
  • Blower regulator (A32n1)
 50
f161 30g 16.0 RDWH Valid without code (B03) ECO start/stop function:
  • Front SAM control module with fuse and relay module (N10/1)
 100
  30 4.0 RDGN Valid for code (965) Electrical preinstallation for rental vehicles and code (B03) ECO start/stop function:
  • Special-purpose vehicle multifunction control unit (N26/9)
 50
f162 30g - Valid without code (B03) ECO start/stop function:
  • Reserve
 -
  30 6.0 RD Valid for model 204.0/2/3 as of 1.6.12 with code (B03) ECO start/stop function:
  • Interior compartment fuse box (F34)
 60
f163 30g 16.0 RD Valid without code (B03) ECO start/stop function:
  • Rear SAM control unit with fuse and relay module (N10/2)
 150
f164 30 10.0 RD Valid without code (B03) ECO start/stop function:
  • Rear SAM control unit with fuse and relay module (N10/2)
 80
