Remove/install O2 sensor - AR07.04-P-0080OGR
ENGINE 642 in MODEL 166
| Remove/install | |||
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Open engine hood and move to vertical position | AR88.40-P-1000GQ | |
| 2 | Remove upper engine cover | ||
| 3 | Remove right section of the bulkhead | ||
| 4 | Remove heat shield of turbocharger | ||

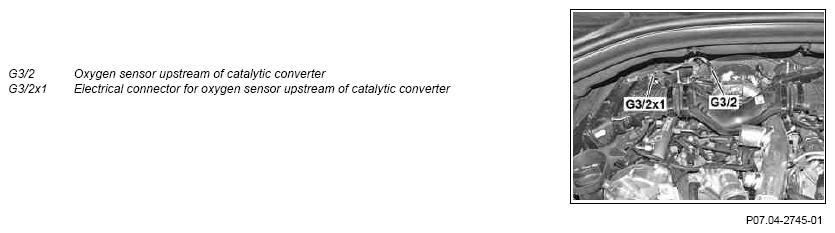

| 5 | Disconnect electrical connection (G3/2x1) | ||
| 6 | Remove oxygen sensor (G3/2) | ||
| *BA14.00-P-1003-01F | |||
| Paste, hot lubrication 1 kg, DB supply specification 6879.20 | *BR00.45-Z-1005-06A | ||
| 7 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Do an engine test run and check for leaks |
O2 SENSOR
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA14.00-P-1003-01F | Control sensor upstream of catalytic converter | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
