Service Campaign 2022080005 - Perform Engine Control Unit Software Update (P-SC-2022080005)

Publication date: 2024-08-09
Reference number: P-SC-2022080005

SERVICE CAMPAIGN 2022080005 - PERFORM ENGINE CONTROL UNIT SOFTWARE UPDATE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): P-SC-2022080005, Date of Issue: August 09, 2024

MERCEDES-BENZ:

Various Models Model Year 2012-2018

SERVICE INFORMATION

IMPORTANT NEW EMISSION SERVICE CAMPAIGN INFORMATION

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.

Sincerely,

Gregory Gunther

Senior Manager, Vehicle Compliance & Analysis

Campaign No. 2022080005, August 2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Various Models

Model Year 2012-2018

Perform Engine Control Unit Software Update

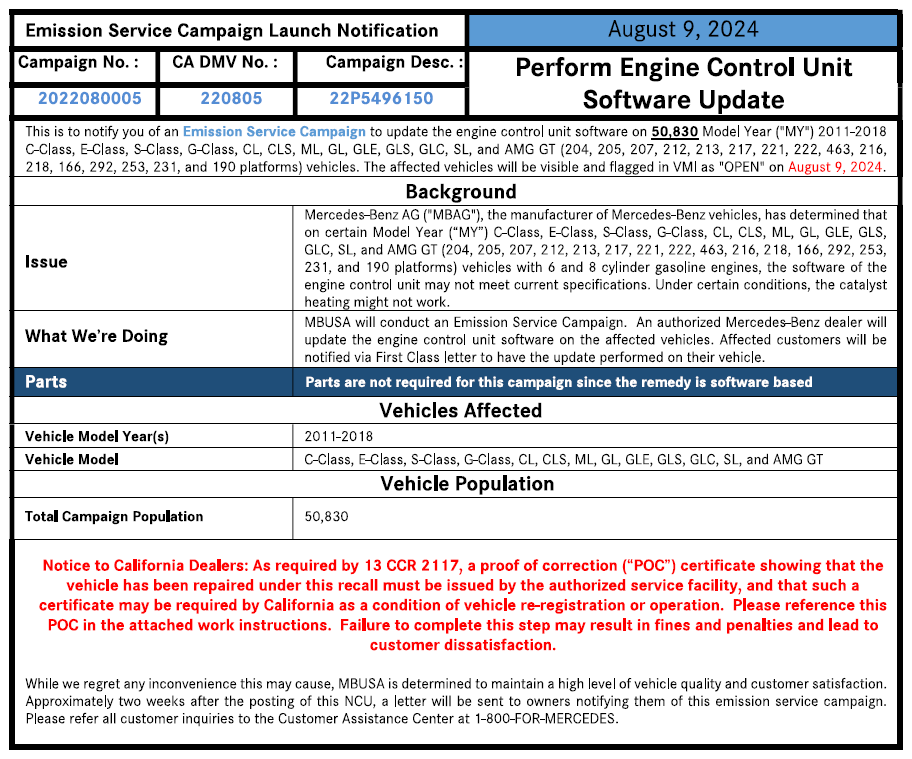

Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz vehicles, has determined that on certain Model Year ("MY") 2011-2018 C-Class, E-Class, S-Class, G-Class, CL, CLS, ML, GL, GLE, GLS, GLC, SL, and AMG GT (204, 205, 207, 212, 213, 217, 221, 222, 463, 216, 218, 166, 292, 253, 231, and 190 platforms) vehicles with 6 and 8 cylinder gasoline engines, the software of the engine control unit may not meet current specifications. Under certain conditions, the catalyst heating might not work.

An authorized Mercedes-Benz dealer will update the engine control unit software on the affected vehicles.

Prior to performing this Campaign:

VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Perform Engine Control Unit Software Update

Always use the latest XENTRY Diagnosis software release with all available add-ons.
Make sure to follow the operation steps exactly as described in XENTRY Diagnosis.
Use a battery charger to ensure sufficient power supply of the vehicle on-board electrical system battery (greater than 12.5 V).
If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step 2 .

If two or more software updates or SCN codings are performed during one workshop visit, operation items 02-4762 and 02-5058 may be invoiced only once for each workshop order.

WORK PROCEDURE

Connect XENTRY Diagnosis.
Update software for engine control unit.
To do this, select menu item "Quick test view - Motor electronics - Adaptations - Control unit update-Updating of control unit software."

Then follow the user guidance in XENTRY Diagnosis.
Disconnect XENTRY Diagnosis.

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair.

WARRANTY INFORMATION

Damage Code

Operation Number

Description

Labor Time (hrs.)

54 961 50

02-9334

Update engine control unit software (with XENTRY Diagnosis connected)

0.1

02-4762 ⁽¹⁾

Connect/disconnect diagnostic system (XENTRY Diagnosis)

0.1

02-5058 ⁽¹⁾

Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)

0.1

⁽¹⁾	Invoice operation item only once for each workshop order.

NOTE: Always check Xentry Operation Time (XOT) for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.

The following step applies to California dealers only.

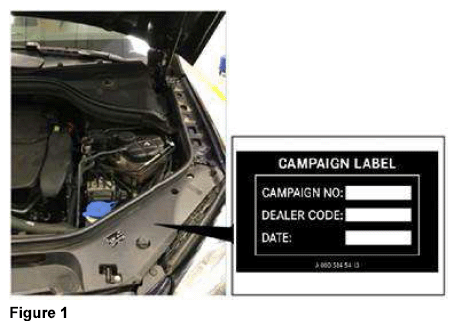

Apply Proof of Correction Label (A 000 584 54 13) to area identified in Figure 1. Fill in the blank areas of the label. The "Campaign No." for the California Proof of Correction is unique and must be entered as such (220805) , your "Dealer Code" , and the "Date" of the repair, using a black permanent marker.

NOTE: Clean bonding surface prior to affixing label.

The following step applies to California dealers only.

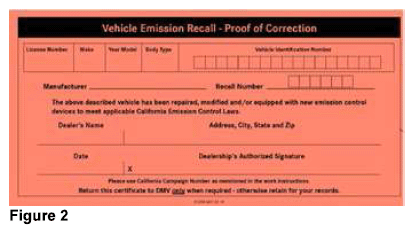

Provide the owner with the completed and signed Proof of Correction Certificate (A 000 584 42 14) (Figure 2) , after you scan a completed form and attach to the RO. The recall number for the California Proof of Correction Certificate is unique and must be entered as such (220805) .

California Proof of Correction Parts Information

PARTS INFORMATION

Qty.	Part Name	Part Number
1	Proof of Correction Certificate (CA Dealers Only)	A 000 584 42 14
1	Proof of Correction Label (CA Dealers Only)	A 000 584 54 13

WARRANTY INFORMATION

(CALIFORNIA DEALERS PLEASE SUBMIT CLAIM ON A SEPARATE LINE OF THE SAME RO AS THE CAMPAIGN)

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
212CA 00	02-0001	Apply Proof of Correction Label and completed Proof of Correction Certificate	0.1
