GARMIN Map Pilot: Message "Update Card Not Supported" After Update Using Download Manager (LI82.85-P-063235)
Publication date: 2016-02-01Reference number: LI82.85-P-063235
GARMIN MAP PILOT: MESSAGE "UPDATE CARD NOT SUPPORTED" AFTER UPDATE USING DOWNLOAD MANAGER
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI82.85-P-063235 Version 1, Date of Issue:
February 1, 2016
| Mercedes-Benz: | NTG 5*1: Model 117, 156, 166, 176, 207, 212, 218, 242, 246, 292 with code 522 (Audio 20 NTG5 radio incl. preinstallation for SD card navigation) or code 357 (SD card navigation); NTG 5*2: Model 205, 253 with code 522 (Audio 20 NTG5 radio with navigation capability) and code 355 (Preinstallation for navigation retrofit) or 357 (SD card navigation) |
| Design Group: | 82.85 Navigation and Communication system (CNS, ICS, COMAND, FleetBoard) |
| Reason For Change: |
COMPLAINT
When using SD cards with software which was updated using the Download Manager in the period between 1/13/2016 and 1/22/2016, the following message may be displayed in the vehicle (cf. pictures in attachment):
"Production check
An update card is not supported.
Please contact your local Mercedes-Benz dealer."
This only affects older SD cards labeled with the version designation V2.2 or less and occurs even when the software update was completed successfully with no error messages using the Download Manager.
NOTE:
- As of Download Manager Version 2.0.20 (available since 10/9/2015) the "Settings" menu can be used to save and restore the data on the SD card.
- Additional information on the Garmin MAP PILOT is available in P-B-82.61/704
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|

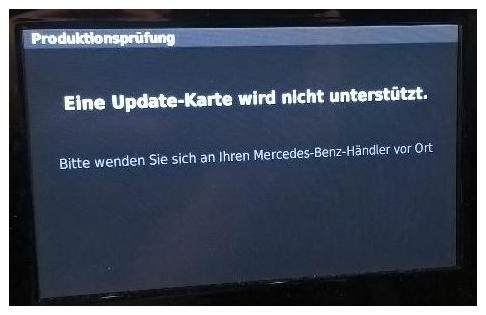

| Error message in vehicle (German) | |

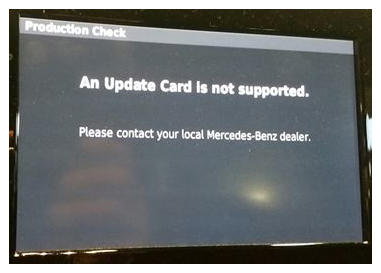

| Error message in vehicle (English) |
CAUSE
Download Manager software release
REMEDY
- Do not replace SD cards.
- Delete the file "downloadmanager.xml" from the SD card using windows explorer and then perform another software update of the SD card using the Download Manager Version 2.0.26 (available as of 1/23/2016) or higher
.NOTE: If, when starting an older version of the Download Manager, an update is not automatically made to the required version, you will have to update the Download Manager manually first to enable a software update of the SD card to be conducted successfully.
OPERATION NUMBERS/DAMAGE CODES
OPERATION NUMBERS/DAMAGE CODES
| Op. no. | Operation text | Time | Damage code | Note |
|---|---|---|---|---|
| 82-9920 | PERFORM SOFTWARE UPDATE FOR NAVIGATION BOX | 53307 F9 | Memory card (accessory) is not read |
WIS-REFERENCES
WIS-REFERENCES
| Document number | Title | Note | Allocation |
|---|---|---|---|
| SI82.61-P-0002A | Service Information: Notes on handling Garmin MAP PILOT card navigation system | Complaint |
