Remove/install injection system control unit - AR07.08-P-7008MR

ENGINE 274 in MODEL 172, 204, 207

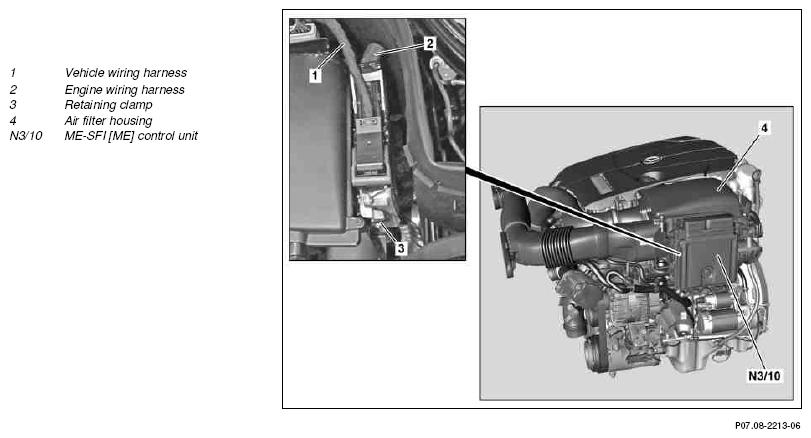

Fig 1: Identifying Injection System Control Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Read out variant coding of the ME-SFI [ME] control unit (N3/10) with diagnostic system	When replacing ME-SFI [ME] control unit (N3/10)
			AD00.00-P-2000-04A
		Transfer stored data to new ME-SFI [ME] control unit (N3/10). Connect up diagnostic system and read data from ME-SFI [ME] control unit (N3/10) in diagnostic system.
2	Disconnect vehicle wiring harness (1) on ME-SFI [ME] control unit (N3/10)
3	Disconnect engine wiring harness (2) on ME-SFI [ME] control unit (N3/10)
4	Open retaining clamps (3) and remove ME-SFI [ME] control unit (N3/10) from air filter housing (4)	Check seal between air filter housing (4) and ME-SFI [ME] control unit (N3/10) for damage and replace if necessary.
5	Install in the reverse order
6	Perform sensor rotor adaptation with diagnostic system	When replacing ME-SFI [ME] control unit (N3/10)
			AD00.00-P-2000-04A
7	Release transport protection on ME-SFI [ME] control unit (N3/10)	When replacing ME-SFI [ME] control unit (N3/10)
8	Personalize and activate ME-SFI [ME] control unit (N3/10)	When replacing ME-SFI [ME] control unit (N3/10)
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Carry out an engine test run
