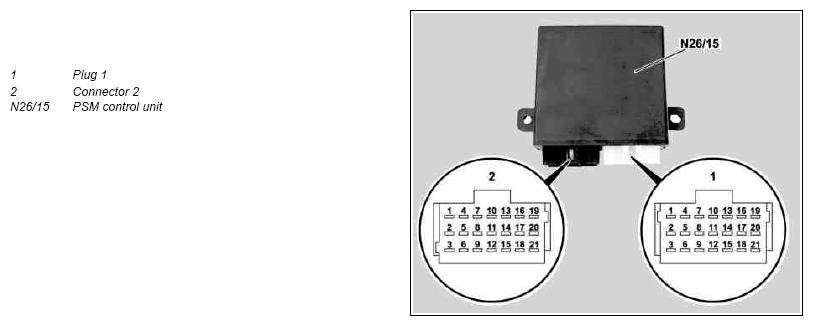

PARAMETERIZABLE Special Module (PSM) Control Unit Connector Assignment - GF54.21-D-0002-04HB
Model 906 with code BR9 (Provision for fitting Telma retarder) with code ED5 (Parameterisable special module) except code JV5 (Install. kit for res. mileage recording unit) except code M53 (Constant speed control) except code MT4 (Electronic engine speed governor, variable) Control unit connector assignment with preinstallation for eddy current brake
PLUG 1
| Pin no. | Use | Assignment |
|---|---|---|
| 1 | Not used/spare. | Not used |
| 2 | Output 18 (negative, 0.5 A) | A_05_MIN_2_PIN |
| 3 | Terminal 30.1 | Terminal 30 |
| 4 | Output 07 (positive, 5 A) | A_5A_1 |
| 5 | Output 17 (negative, 0.5 A) | A_05_MIN_1_PIN |
| 6 | Terminal 30.2 | Terminal 30 |
| 7 | Output 08 (positive, 5 A) | Actuation of retarder stage 1 |
| 8 | Output 09 (positive, 1 A, pulse width modulation (PWM) capable) | A_1A_1 |
| 9 | Output 16 (positive, 0.5 A) | Readback input for retarder ON from retarder switch |
| 10 | Output 05 (positive, 5 A capable of waking) | Actuation of retarder stage 2 |
| 11 | Output 10 (positive, 1 A, PWM-capable) | A_1A_2 |
| 12 | Output 15 (positive, 0.5 A) | Supply for selector lever retarder switch |
| 13 | Output 06 (positive, 5 A capable of waking) | Actuation of retarder stage 3 |
| 14 | Output 11 (negative, 1 A) | A_1A_3 |
| 15 | Output 14 (positive, 0.5 A) | A_05_POS_2_PIN |
| 16 | Output 03 (positive, 10 A capable of waking) | A_10A_WAKE_1 |
| 17 | Output 12 (negative, 1 A) | A_1A_4 |
| 18 | Terminal 30.1 | Terminal 30 |
| 19 | Output 04 (positive, 10 A capable of waking) | A_10A_WAKE_2 |
| 20 | Output 13 (positive, 0.5 A) | A_05_POS_1_PIN |
| 21 | Terminal 30.2 | Terminal 30 |
CONNECTOR 2
| Pin no. | Use | Assignment |
|---|---|---|
| 1 | Input 06 (low active) | E_EMIN3 |
| 2 | Input 04 (low active) | E_EMIN1 |
| 3 | Terminal 31 | Terminal 31 |
| 4 | Input 01 (high active) | Input, selector lever retarder switch "stage 1" |
| 5 | Input 05 (low ACTIVE) | E_EMIN2 |
| 6 | Input 02 (high active) | Input, selector lever retarder switch "stage 3" |
| 7 | Input 03 (high active) | Input, selector lever retarder switch "stage 2" |
| 8 | Input 07 (analog) | E_EANA0 |
| 9 | Control Area Network bus Class B (Vehicle interior) (CAN-B) low | CAN B (low) |
| 10 | Input 09 (analog) | E_EANA2 |
| 11 | Input 08 (analog) | Input, retarder "Foot actuation off" switch |
| 12 | CAN-B high | CAN B (high) |
| 13 | Output 01 (asymmetric half-bridge/5 A) | H_Bruecke_Plus |
| 14 | Input 10 (analog) | E_EANA3 |
| 15 | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)- Low | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)-Low |
| 16 | Output 02 (asymmetric half-bridge/5 A) | H_Bruecke_Minus |
| 17 | Output 20 (negative, 0.5 A) | _05_MIN_4_PIN |
| 18 | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)- High | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)-High |
| 19 | Output 19 (negative, 0.5 A) | A_05_MIN_3_PIN |
| 20 | Not used/spare. | Not used |
| 21 | Not used/spare. | Not used |
