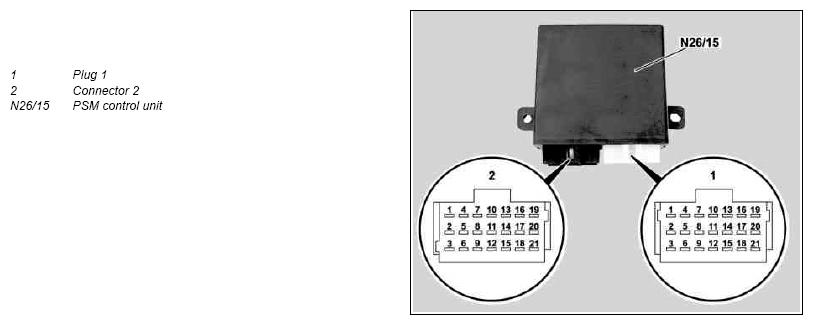

PARAMETERIZABLE Special Module (PSM) Control Unit Connector Assignment - GF54.21-D-0002-04HC
Model 906 with code ED5 (Parameterisable special module) with code M53 (Constant speed control) with code MT4 (Electronic engine speed governor, variable) Control unit connector assignment for rpm control
| Pin no. | Use | Assignment |
|---|---|---|
| 1 | Not used/spare. | Not used |
| 2 | Output 18 (negative, 0.5 A) | A_05_MIN_2_PIN |
| 3 | Terminal 30.1 | Terminal 30 |
| 4 | Output 07 (positive, 5 A) | Power take-off solenoid valve actuation |
| 5 | Output 17 (negative, 0.5 A) | A_05_MIN_1_PIN |
| 6 | Terminal 30.1 | Terminal 30 |
| 7 | Output 08 (positive, 5 A) | A_5A_2 |
| 8 | Output 09 (positive, 1 A, pulse width modulation (PWM) capable) | A_1A_1 |
| 9 | Output 16 (positive, 0.5 A) | A_05_POS_4_PIN |
| 10 | Output 05 (positive, 5 A capable of waking) | A_5A_WAKE_1 |
| 11 | Output 10 (positive, 1 A, PWM-capable) | A_1A_2 |
| 12 | Output 15 (positive, 0.5 A) | A_05_POS_3_PIN |
| 13 | Output 06 (positive, 5 A capable of waking) | Input, ADR ON switch |
| 14 | Output 11 (negative, 1 A) | A_1A_3 |
| 15 | Output 14 (positive, 0.5 A) | A_05_POS_2_PIN |
| 16 | Output 03 (positive, 10 A capable of waking) | A_10A_WAKE_1 |
| 17 | Output 12 (negative, 1 A) | A_1A_4 |
| 18 | Terminal 30.2 | Terminal 30 |
| 19 | Output 04 (positive, 10 A capable of waking) | A_10A_WAKE_2 |
| 20 | Output 13 (positive, 0.5 A) | ADR indicator lamp activated. |
| 21 | Terminal 30.2 | Terminal 30 |
CONNECTOR 2
| Pin no. | Use | Assignment |
|---|---|---|
| 1 | Input 06 (low active) | Readback input for ADR ON switch |
| 2 | Input 04 (low active) | E_EMIN1 |
| 3 | Terminal 31 | Terminal 31 |
| 4 | Input 01 (high active) | E_EPOS1 |
| 5 | Input 05 (low ACTIVE) | E_EMIN2 |
| 6 | Input 02 (high active) | E_EPOS2 |
| 7 | Input 03 (high active) | E_EPOS3 |
| 8 | Input 07 (analog) | E_EANA0 |
| 9 | Control Area Network bus Class B (Vehicle interior) (CAN-B) low | CAN B (low) |
| 10 | Input 09 (analog) | Input, ADR button "Change rpm" |
| 11 | Input 08 (analog) | E_EANA1 |
| 12 | CAN-B high | CAN B (high) |
| 13 | Output 01 (asymmetric half-bridge/5 A) | H_Bruecke_Plus |
| 14 | Input 10 (analog) | E_EANA3 |
| 15 | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)- Low | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)-Low |
| 16 | Output 02 (asymmetric half-bridge/5 A) | H_Bruecke_Minus |
| 17 | Output 20 (negative, 0.5 A) | _05_MIN_4_PIN |
| 18 | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)- High | Controller Area Network bus Class C (body manufacturer) (CAN-ABH)-High |
| 19 | Output 19 (negative, 0.5 A) | A_05_MIN_3_PIN |
| 20 | Not used/spare. | Not used |
| 21 | Not used/spare. | Not used |
