PARAMETERIZABLE Special Module (PSM) Control Unit Connector Assignment - GF54.21-D-0002-04PC
Model 906
with code ED5 (Parameterisable special module)
with code XM0 (Facelift)
Connector assignment of PSM control unit with rpm control

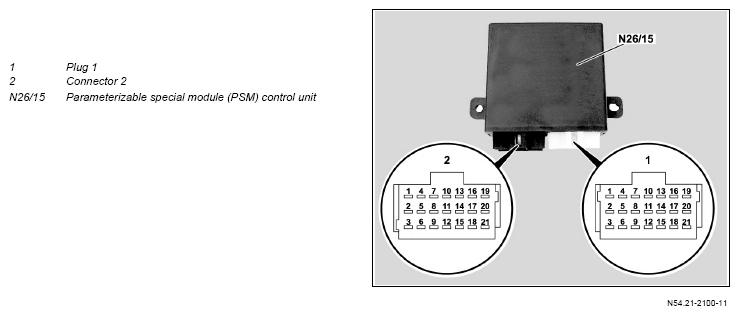

CONNECTOR 1 (1)
| Pin no. | Use | Assignment |
|---|---|---|
| 1 | Not used, spare | Not assigned |
| 2 | Output 18 (negative, 0.5 A) | A_05_MIN_2_PIN |
| 3 | Tml. 30.1 | Terminal 30 (T. 30) |
| 4 | Output 07 (positive, 5 A) | Power take-off solenoid valve actuation |
| 5 | Output 17 (negative, 0.5 A) | A_05_MIN_1_PIN |
| 6 | Tml. 30.1 | Terminal 30 (T. 30) |
| 7 | Output 08 (positive, 5 A) | A_5A_2 |
| 8 | Output 09 (positive, 1 A, pulse width modulation capable (PWM-capable)) | A_1A_1 |
| 9 | Output 16 (positive, 0.5 A) | A_05_POS_4_PIN |
| 10 | Output 05 (positive, 5 A, wake-up capable) | A_5A_WAKE_1 |
| 11 | Output 10 (positive, 1 A, PWM-capable) | A_1A_2 |
| 12 | Output 15 (positive, 0.5 A) | A_05_POS_3_PIN |
| 13 | Output 06 (positive, 5 A, wake-up capable) | Input, working speed control (ADR) switch "ON" |
| 14 | Output 11 (negative, 1 A) | A_1A_3 |
| 15 | Output 14 (positive, 0.5 A) | A_05_POS_2_PIN |
| 16 | Output 03 (positive, 10 A, wake-up capable) | A_10A_WAKE_1 |
| 17 | Output 12 (negative, 1 A) | A_1A_4 |
| 18 | Circuit 30.2 | Terminal 30 (T. 30) |
| 19 | Output 04 (positive, 10 A, wake-up capable) | A_10A_WAKE_2 |
| 20 | Output 13 (positive, 0.5 A) | ADR indicator lamp activated |
| 21 | Circuit 30.2 | Terminal 30 (T. 30) |
CONNECTOR 2 (2)
| Pin no. | Use | Assignment |
|---|---|---|
| 1 | Input 06 (low active) | Readback input for ADR "ON" switch |
| 2 | Input 04 (low active) | E_EMIN1 |
| 3 | Terminal 31 | Terminal 31 |
| 4 | Input 01 (high active) | E_EPOS1 |
| 5 | Input 05 (low ACTIVE) | E_EMIN2 |
| 6 | Input 02 (high active) | E_EPOS2 |
| 7 | Input 03 (high active) | E_EPOS3 |
| 8 | Input 07 (analog) | E_EANA0 |
| 9 | Interior CAN (CAN B) (Low) | Interior CAN (CAN B) (Low) |
| 10 | Input 09 (analog) | Input, ADR button "Change rpm" |
| 11 | Input 08 (analog) | E_EANA1 |
| 12 | Interior CAN (CAN B) (High) | Interior CAN (CAN B) (High) |
| 13 | Output 01 (asymmetric half-bridge, 5 A) | H_Bridge_Plus |
| 14 | Input 10 (analog) | E_EANA3 |
| 15 | Body manufacturer CAN (low) | Body manufacturer CAN (low) |
| 16 | Output 02 (asymmetric half-bridge, 5 A) | H_Bridge_Minus |
| 17 | Output 20 (negative, 0.5 A) | A_05_MIN_4_PIN |
| 18 | Body manufacturer CAN (high) | Body manufacturer CAN (high) |
| 19 | Output 19 (negative, 0.5 A) | A_05_MIN_3_PIN |
| 20 | Not used, spare | Not assigned |
| 21 | Not used, spare | Not assigned |
