Code Central Electronics Control Unit - Ar54.21-S-0025-01JC

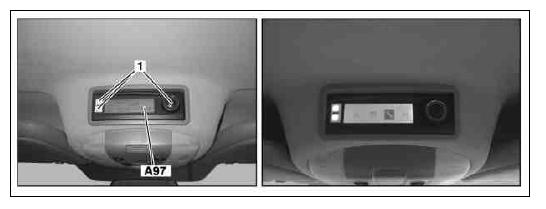

- Call up service menu of central operating unit (ZBE) (A97).
For this purpose keep all control buttons (1) pressed for approx.. 5s.
- Call up menu item "Vehicle configuration".
- Central electronics control unit with vehicle version James Cook Europe as per the table below.
- Exit the service menu.
| Item | Meaning | Adjustment |
|---|---|---|
| 1 | Water heater | 1 |
| 2 | Refrigerator | 1 |
| 3 | WITHOUT gas tank | 0 |
| 4 | Without Blackwater tank | 0 |
| 5 | Without pop-up roof | 0 |
| 6 | Temperature display °C | 1 |
