Remove/Install SCR Frame Module Control Unit - Ar14.40-D-2020S
ENGINES 642.898 in MODEL 906
REMOVE/INSTALL SCR FRAME MODULE CONTROL UNIT - ENGINES 642.898 IN MODEL 906
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

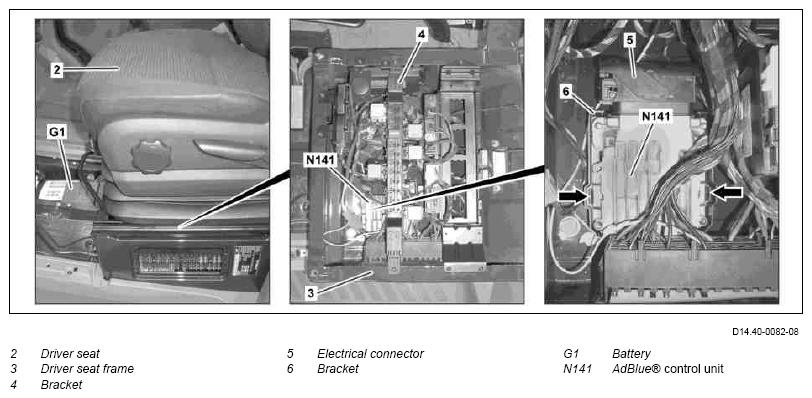

| 1 | Remove driver seat (2) | AR91.10-D-1010H | |
| 2 | Remove covering from driver seat frame (3) | ||
| 3 | Remove bracket (4) for relay from driver seat frame (3) and move to rear | ||
| 4 | Expose AdBlue control unit (N141) | ||
| 5 | Release electrical connector (5) and disconnect AdBlue control unit (N141) | ||
| 6 | Unclip AdBlue control unit (N141) at catch hooks (arrows) of bracket (6) | ||
| 7 | Remove AdBlue control unit (N141) | ||
| 8 | Install in the reverse order | ||
| Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning caused by swallowing AdBlue | Only pour AdBlue into suitable containers. Wait until the pressure is released before starting any work on the exhaust aftertreatment system. | AS14.40-Z-0001-01A | |
| 9 | Fill AdBlue tank. | When replacing AdBlue control unit (N141). Model 906.1/2 without code (KP2) AdBlue tank, 12 l, in engine compartment |
|
| Model 906. with code (KP2) AdBlue tank, 12 l, in engine compartment | AR14.40-D-2014-02A | ||
| Model 906.6/7 without code (KP2) AdBlue tank, 12 l, in engine compartment | AR14.40-D-2014-02S | ||
| Notes on use, material properties and handling of AdBlue | AH14.40-N-0001-01AB | ||
| 10 | Write fill level of AdBlue tank using STAR DIAGNOSIS in the AdBlue control unit (N141) | When replacing AdBlue control unit (N141). | AD00.00-D-2000-04SD |
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR) - ENGINE 642 IN MODEL 906
| Number | Designation | Engine 642.898 without code KP2 in model 906 | Engine 642.898 with code KP2 in model 906 | ||
|---|---|---|---|---|---|
| BF14.40-N-1001-01A | AdBlue tank and filler line | Filling capacity for the initial filling | Liters | 19.2 | 12.8 |
| Filling capacity for a service filling | Liters | - | - | ||
| Specifications for service products | Sheet | BB00.40-P-0352-01A | BB00.40-P-0352-01A | ||
